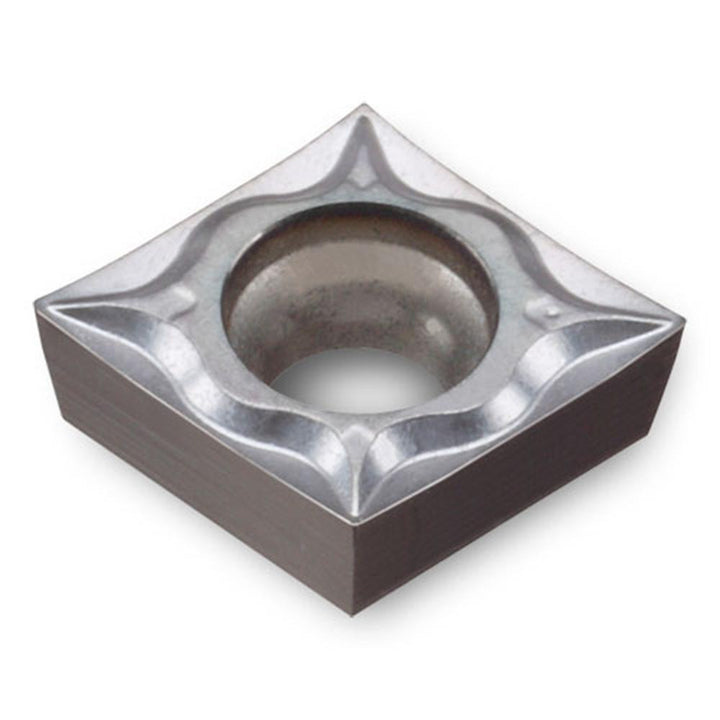

CCGT09T304SA TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523206

Ingersoll Cutting Tools

CCGT09T304SA TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523206

MFR# 5523206ISO/ANSI# CCGT09T304SA TT5080Series CCGT

$24.60List $31.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT5080
MaterialCarbide
CoatingAlTiN

Description

The Ingersoll Cutting Tools 5523206 is a CCGT09T304SA TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.

Specifications

Chip breakerSA
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCGT
Insert thickness0.1560
Iso codeCCGT09T304SA TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.1000
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
Tolerance codeG
Wiper edgeNo
