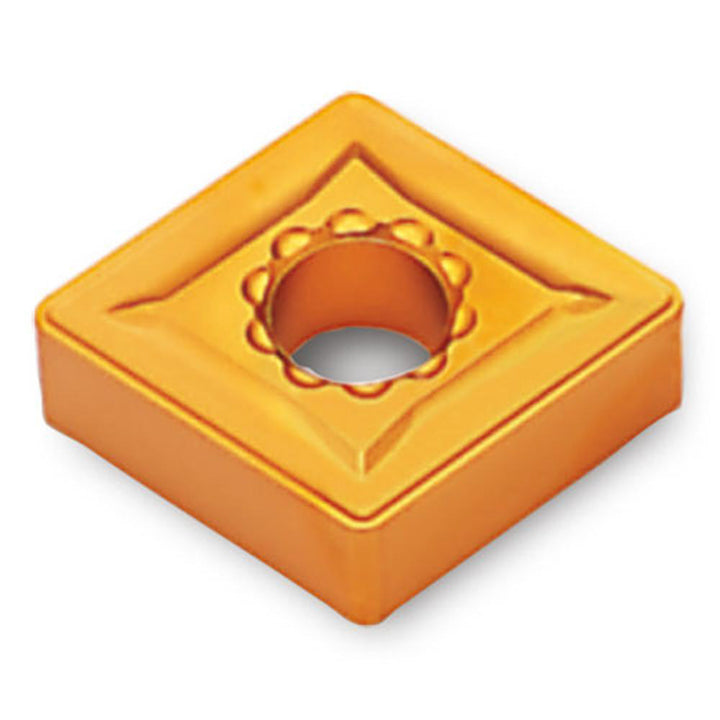

CNMG120408RT TT7015 Solid Carbide Insert, Grade TT7015, TiCN - Ingersoll Cutting Tools 5523577
MFR# 5523577ISO/ANSI# CNMG120408RT TT7015Series CNMG
$15.95List $20.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT7015
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5523577 is a CNMG120408RT TT7015 solid carbide indexable insert, grade TT7015, TiCN coated. Suited for cast iron.
Specifications
Ansi codeCNMG432RTTT7015
Chip breakerRT
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0310
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120408RT TT7015
Manufacturer gradeTT7015
Maximum depth of cut0.2360
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Tolerance codeM
Width in1/2
Wiper edgeNo
