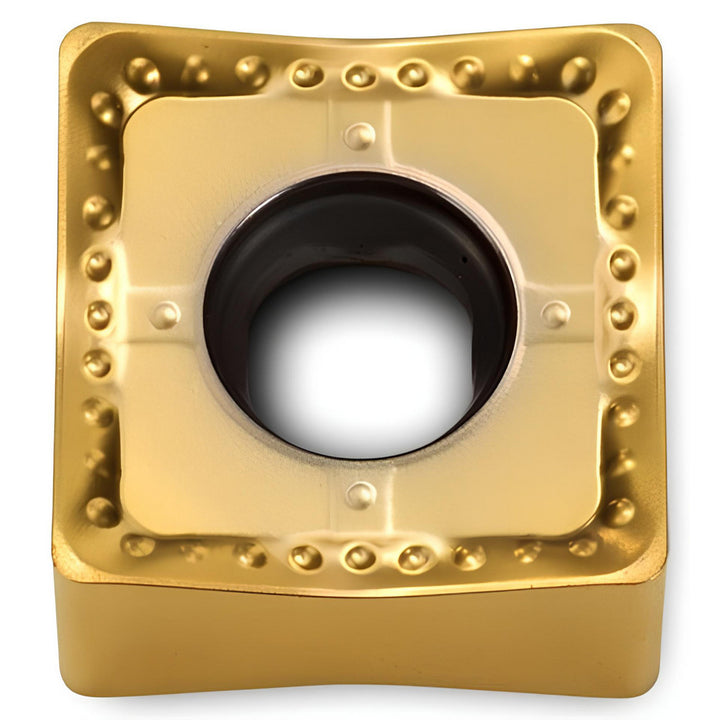

SNGU130608N IN2505 Solid Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5611844

Ingersoll Cutting Tools

SNGU130608N IN2505 Solid Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5611844

MFR# 5611844ISO/ANSI# SNGU130608N IN2505Series SNGU

$30.07List $37.85 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN2505
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5611844 is a SNGU130608N IN2505 solid carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeSNGU130608N IN2505
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityDJ5T; DL5T; DQ5T
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.5300
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code130608
Insert styleSNGU
Iso codeSNGU130608N IN2505
Length0.5300
Length range0.5000 to 0.6000
Manufacturers catalog number5611844
Manufacturer gradeIN2505
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Maximum depth of cut0.4500
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle0
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2680
Thickness range0.2500 to 0.3500
Width0.5300
