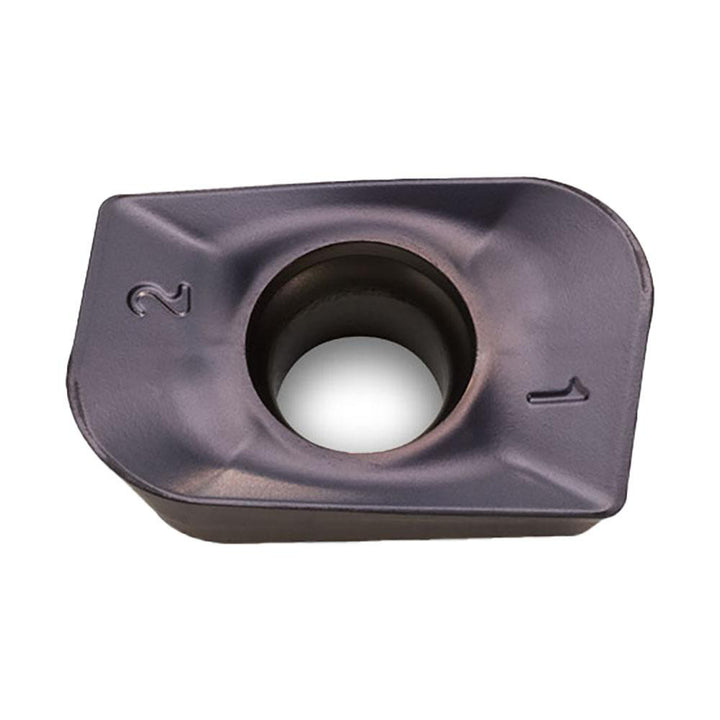

AOMT120432R IM2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5615298

Ingersoll Cutting Tools

AOMT120432R IM2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5615298

MFR# 5615298ISO/ANSI# AOMT120432R IM2530Series AOMT

$22.33List $28.10 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC21/64
ShapeParallelogram
GradeIN2530
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5615298 is a AOMT120432R IM2530 solid carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAOMT120432R IN2530
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/8
Cutter series compatibility12J1X; 12V1X; 22J3X; 22N3X; 2J1X
Cutting edge effective length0.4800
Cutting edge styleSharp
Included angle degree85
Inscribed circle in21/64
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120432
Insert styleAOMT
Iso codeAOMT120432R IM2530
Length0.5240
Length range0.5000 to 0.6000
Manufacturers catalog number5615298
Manufacturer gradeIN2530
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1810
Thickness range0.1750 to 0.1850
Width in21/64
