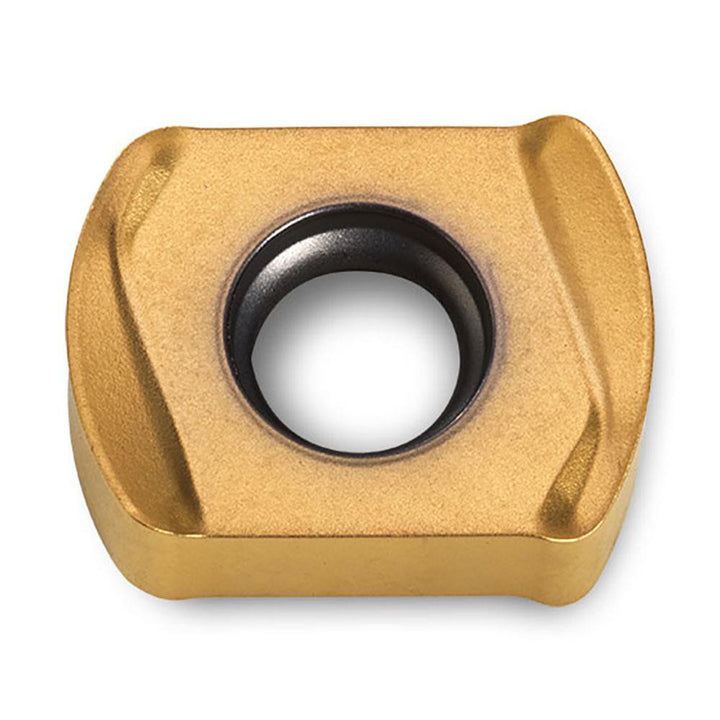

UNLU0904M0TR-MM IN2035 Solid Carbide Insert, Grade IN2035, TiAlN - Ingersoll Cutting Tools 5616813

Ingersoll Cutting Tools

UNLU0904M0TR-MM IN2035 Solid Carbide Insert, Grade IN2035, TiAlN - Ingersoll Cutting Tools 5616813

MFR# 5616813ISO/ANSI# UNLU0904M0TR-MM IN2035Series UNLU

$29.44List $37.05 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeIrregular
GradeIN2035
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5616813 is a UNLU0904M0TR-MM IN2035 solid carbide indexable insert, grade IN2035, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeUNLU0904M0TR-MM IN2035
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibility1TG1G; TG1G; TG2G; TG3G; TG4G
Cutting edge styleChamfered
Inscribed circle0.3610
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeIrregular
Insert size09
Insert size code0904
Insert styleUNLU
Iso codeUNLU0904M0TR-MM IN2035
Length in15/32
Length range0.4500 to 0.5000
Manufacturers catalog number5616813
Manufacturer gradeIN2035
Material applicationStainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1890
Thickness range0.1850 to 0.2000
Width0.3610
