Ingersoll Cutting Tools

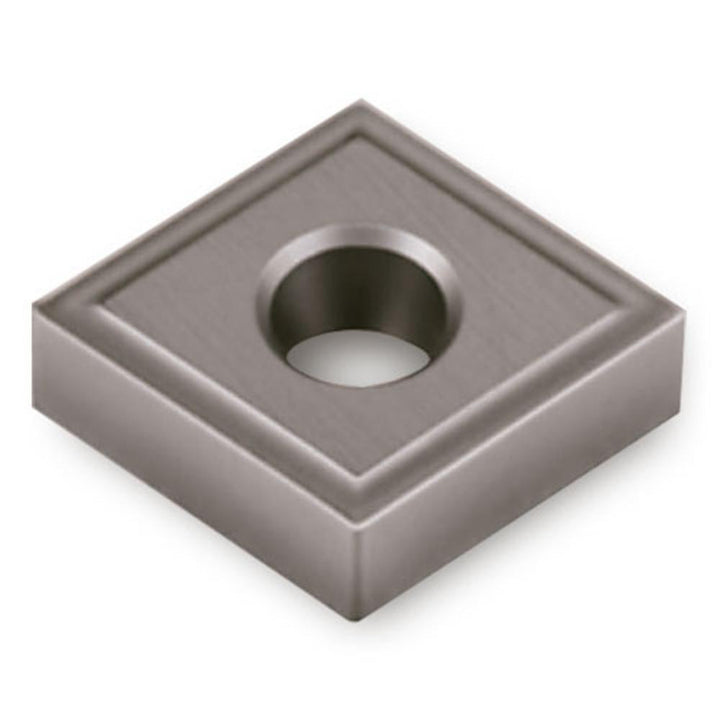

CNMG120404CE AB30 Ceramic Insert, Grade AB30 - Ingersoll Cutting Tools 5700349
MFR# 5700349ISO/ANSI# CNMG120404CE AB30Series CNMG
$13.28List $16.15
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAB30
MaterialCeramic
Description
The Ingersoll Cutting Tools 5700349 is a CNMG120404CE AB30 ceramic indexable insert, grade AB30. Suited for cast iron, hardened steel.
Specifications
Ansi codeCNMG431CEAB30
Chip breakerCE
Clearance codeN
Coating processUncoated
Corner radius in1/64
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCeramic
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404CE AB30
Manufacturer gradeAB30
Number of cutting edges4
Primary workpiece materialCast Iron; Hardened Steel
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
