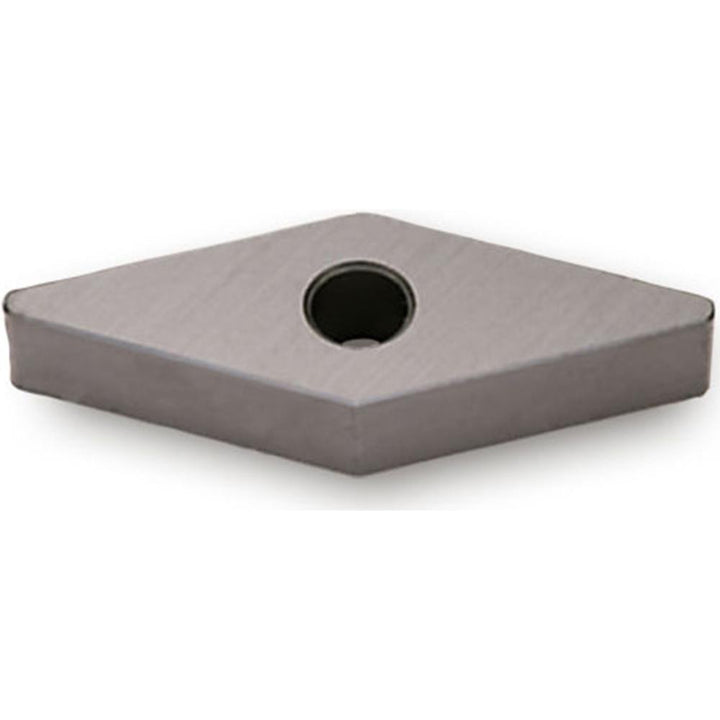

VNGA160408 AB30 Ceramic Insert, Grade AB30, Al2O3 - Ingersoll Cutting Tools 5700785

Ingersoll Cutting Tools

VNGA160408 AB30 Ceramic Insert, Grade AB30, Al2O3 - Ingersoll Cutting Tools 5700785

MFR# 5700785ISO/ANSI# VNGA160408 AB30Series VNGA

$26.23List $31.90 Save 17%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAB30
MaterialCeramic
CoatingAl2O3

Description

The Ingersoll Cutting Tools 5700785 is a VNGA160408 AB30 ceramic indexable insert, grade AB30, Al2O3 coated. Suited for cast iron, hardened steel.

Specifications

Ansi codeVNGA332AB30
Chip breakerA
Clearance codeN
Coating finishAl2O3
Coating processPVD
Corner radius0.0310
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6540
Insert materialCeramic
Insert shapeDiamond
Insert size code332
Insert styleVNGA
Insert thickness0.1870
Iso codeVNGA160408 AB30
Manufacturer gradeAB30
Maximum depth of cut0.4665
Number of cutting edges4
Primary workpiece materialCast Iron; Hardened Steel
RakeNegative
Relief angle0
Tolerance codeG
Width in3/8
Wiper edgeNo
