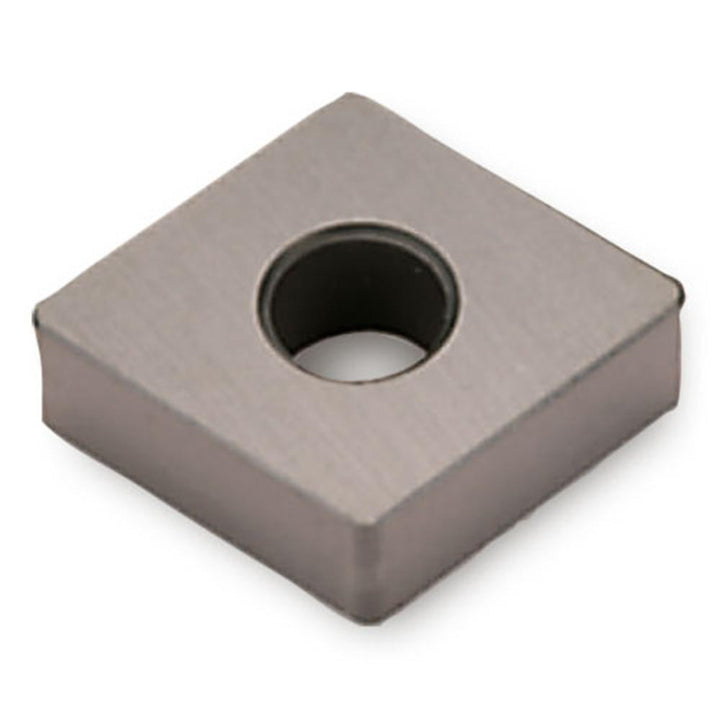

CNGA120408 AB2010 Ceramic Insert, Grade AB2010, Al2O3 - Ingersoll Cutting Tools 5702677

Ingersoll Cutting Tools

CNGA120408 AB2010 Ceramic Insert, Grade AB2010, Al2O3 - Ingersoll Cutting Tools 5702677

MFR# 5702677ISO/ANSI# CNGA120408 AB2010Series CNGA

$20.18List $24.55 Save 17%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAB2010
MaterialCeramic
CoatingAl2O3

Description

The Ingersoll Cutting Tools 5702677 is a CNGA120408 AB2010 ceramic indexable insert, grade AB2010, Al2O3 coated. Suited for hardened steel.

Specifications

Chip breakerA
Clearance codeN
Coating finishAl2O3
Coating processPVD
Corner radius0.0310
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCeramic
Insert shapeDiamond
Insert size code432
Insert styleCNGA
Insert thickness0.1870
Iso codeCNGA120408 AB2010
Manufacturer gradeAB2010
Maximum depth of cut0.2580
Number of cutting edges4
Primary workpiece materialHardened Steel
RakeNegative
Relief angle0
Tolerance codeG
Width in1/2
Wiper edgeNo
