Ingersoll Cutting Tools

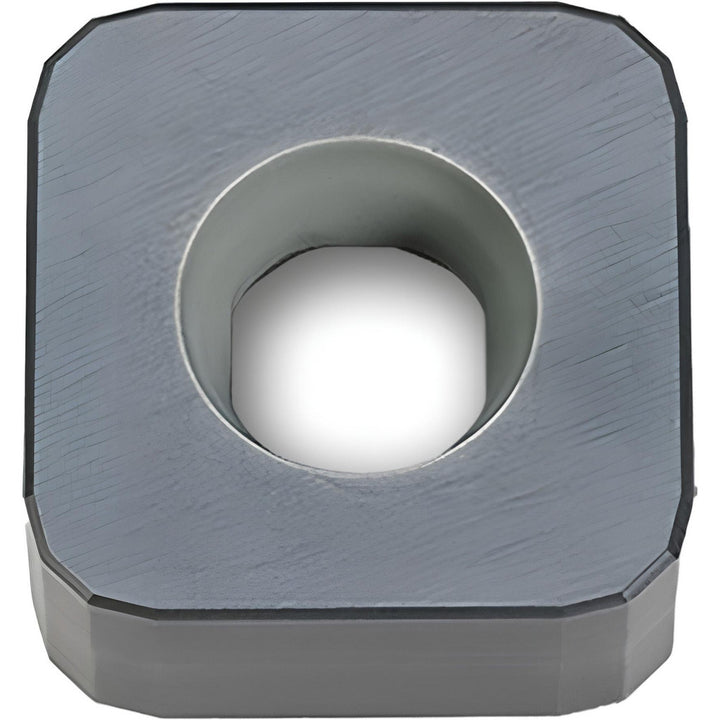

SNGQ1205ENN IN71N Silicon Nitride Insert, Grade IN71N - Ingersoll Cutting Tools 5702957
MFR# 5702957ISO/ANSI# SNGQ1205ENN IN71NSeries SNGQ
$31.39List $39.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIN71N
MaterialSilicon Nitride
Description
The Ingersoll Cutting Tools 5702957 is a SNGQ1205ENN IN71N silicon nitride indexable insert, grade IN71N. Suited for cast iron.
Specifications
Ansi codeSNGQ1205ENN IN71N
Chip breakerNone
Coating processUncoated
Cutter series compatibility1DD1H; DD6H; DL5H; DN5H
Cutting edge styleSharp
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSilicon Nitride
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSNGQ
Iso codeSNGQ1205ENN IN71N
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number5702957
Manufacturer gradeIN71N
Material applicationCast Iron
Maximum depth of cut0.4200
Multi use toolNo
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2510
Thickness range0.2500 to 0.3500
Width in1/2
