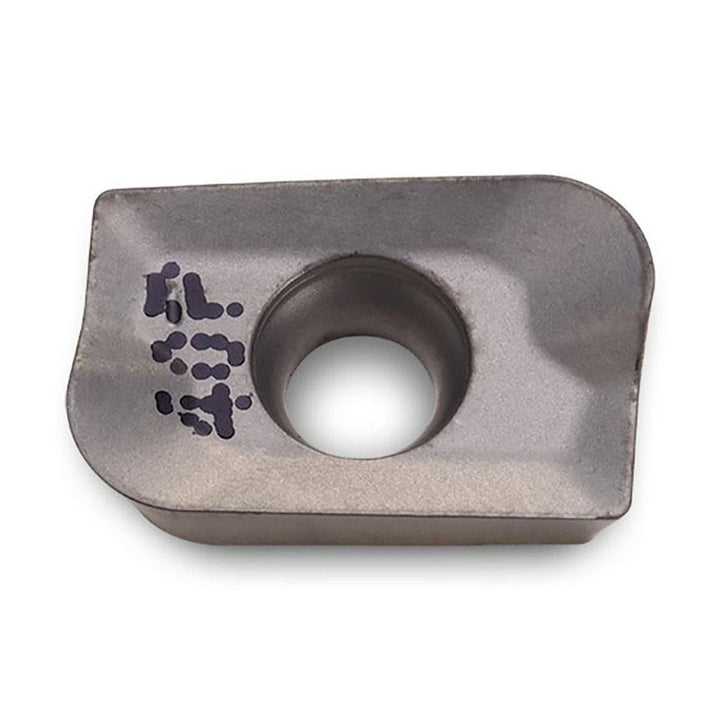

APKT120324R Solid Carbide Insert, Grade IN40P - Ingersoll Cutting Tools 5800681

Ingersoll Cutting Tools

APKT120324R Solid Carbide Insert, Grade IN40P - Ingersoll Cutting Tools 5800681

MFR# 5800681ISO/ANSI# APKT120324RSeries APEB

$16.59List $21.25 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN40P
MaterialSolid Carbide

Description

The Ingersoll Cutting Tools 5800681 is a APKT120324R solid carbide indexable insert, grade IN40P. Suited for steel.

Specifications

Ansi codeAPEB42R03 IN40P
Chip breakerCommon
Coating processUncoated
Corner radius0.0930
Cutter series compatibility12J1Q; 22J*Q; 22J3Q; 2J1Q
Cutting edge effective length0.4700
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.3120
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size42
Insert size code42
Insert styleAPEB
Iso codeAPKT120324R
Length0.4900
Length range0.4500 to 0.5000
Manufacturers catalog number5800681
Manufacturer gradeIN40P
Material applicationSteel
Material gradeC5; C6
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1500
Thickness range0.1500 to 0.1750
Width0.3120
