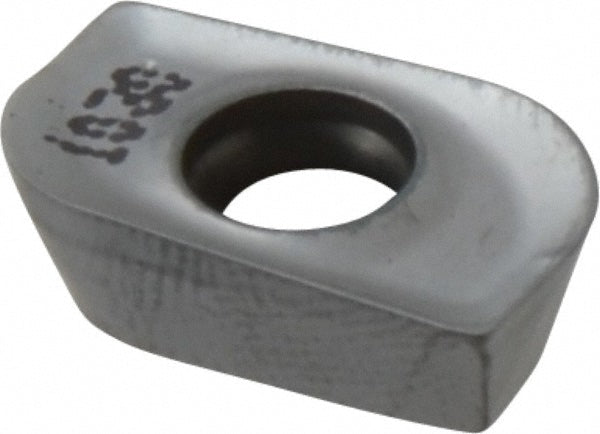

APKT160448R Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5801934

Ingersoll Cutting Tools

APKT160448R Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5801934

MFR# 5801934ISO/ANSI# APKT160448RSeries APEB

$24.16List $30.40 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeIN1030
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5801934 is a APKT160448R solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPEB53R06 IN1030
Chip breakerCommon
Coating finishTiCN
Coating processPVD
Corner radius0.1870
Cutter series compatibility12J1B; 12J4B; 22J3B; 22J5B; 23J6G; 2J1B
Cutting edge effective length0.6000
Cutting edge styleSharp
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size53
Insert size code53
Insert styleAPEB
Iso codeAPKT160448R
Length0.6360
Length range0.6000 to 0.6500
Manufacturers catalog number5801934
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2060
Thickness range0.2000 to 0.2200
Width in3/8
