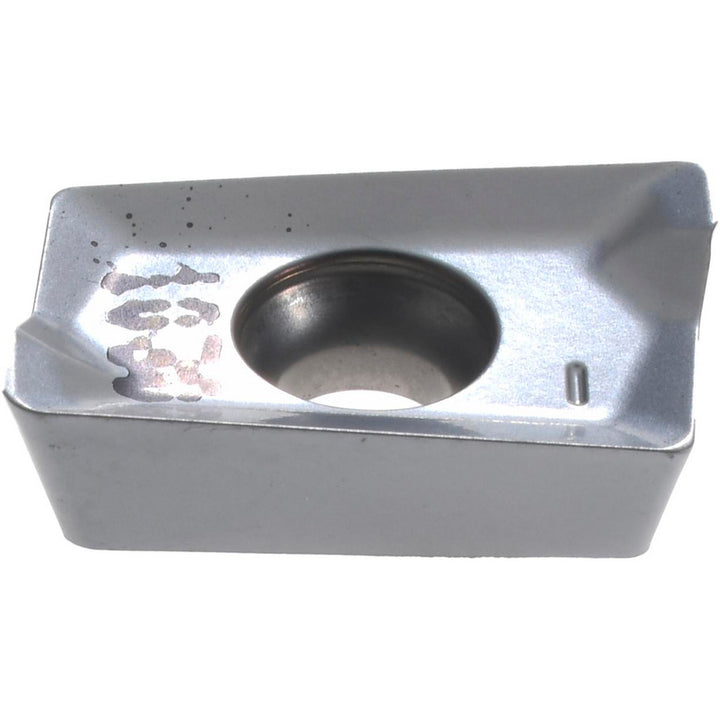

APKT120308R-HS Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5802378

Ingersoll Cutting Tools

APKT120308R-HS Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5802378

MFR# 5802378ISO/ANSI# APKT120308R-HSSeries APLV

$23.37List $29.40 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN1030
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5802378 is a APKT120308R-HS solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPLV42R01 IN1030
Chip breakerHS
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibility12_1Q; 12J1Q; 12S1Q; 22J*Q; 22J3Q; 2J1Q
Cutting edge effective length0.4700
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.3120
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size42
Insert size code42
Insert styleAPLV
Iso codeAPKT120308R-HS
Length0.4800
Length range0.4500 to 0.5000
Manufacturers catalog number5802378
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1500
Thickness range0.1500 to 0.1750
Width0.3120
