Ingersoll Cutting Tools

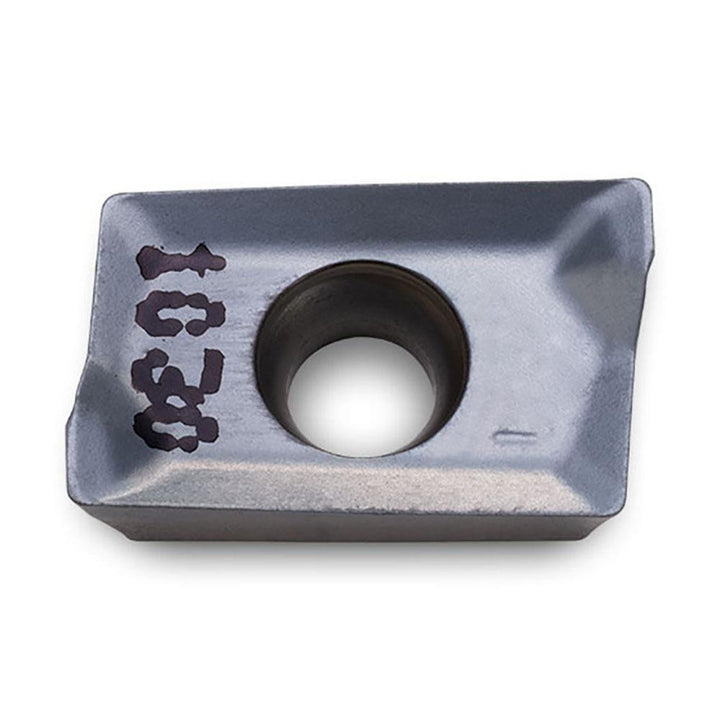

APKT120304R-HS IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5802379
MFR# 5802379ISO/ANSI# APKT120304R-HS IN1030Series APLV
$22.96List $29.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIN1030
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5802379 is a APKT120304R-HS IN1030 solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeAPLV42R02 IN1030
Chip breakerHS
Coating finishTiCN
Coating processPVD
Corner radius0.0150
Cutter series compatibility12_1Q; 12J1Q; 12S1Q; 22J*Q; 22J3Q; 2J1Q
Cutting edge effective length0.4700
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.3120
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size42
Insert size code42
Insert styleAPLV
Iso codeAPKT120304R-HS IN1030
Length0.4800
Length range0.4500 to 0.5000
Manufacturers catalog number5802379
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1500
Thickness range0.1500 to 0.1750
Width0.3120
