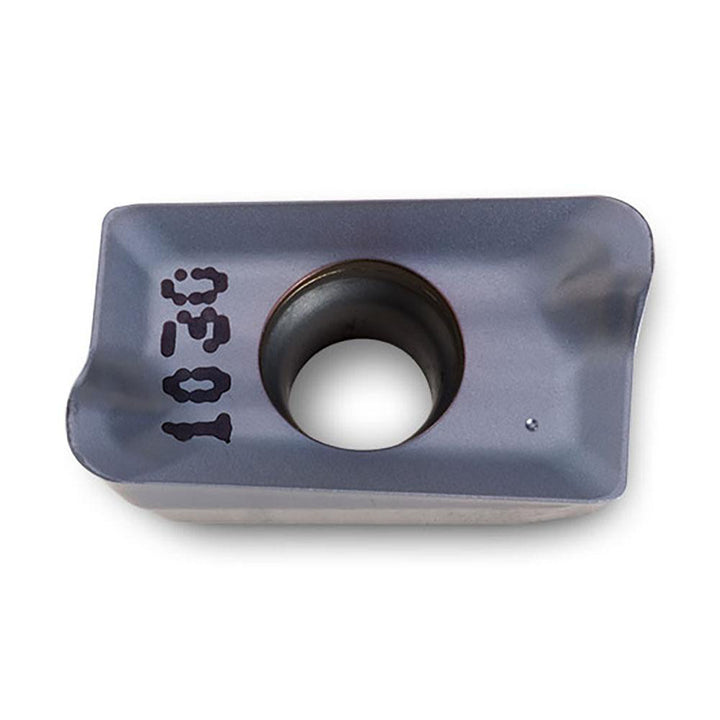

APKT160416R-HS IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5802382
MFR# 5802382ISO/ANSI# APKT160416R-HS IN1030Series APLV
$26.27List $33.65
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeIN1030
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5802382 is a APKT160416R-HS IN1030 solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeAPLV53R03 IN1030
Chip breakerHS
Coating finishTiCN
Coating processPVD
Corner radius0.0620
Cutter series compatibility12J1B; 12N1B; 22J3B; 22J5B; 2J1B
Cutting edge effective length0.6000
Cutting edge styleSharp
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size53
Insert size code53
Insert styleAPLV
Iso codeAPKT160416R-HS IN1030
Length0.6370
Length range0.6000 to 0.6500
Manufacturers catalog number5802382
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2000
Thickness range0.2000 to 0.2200
Width in3/8
