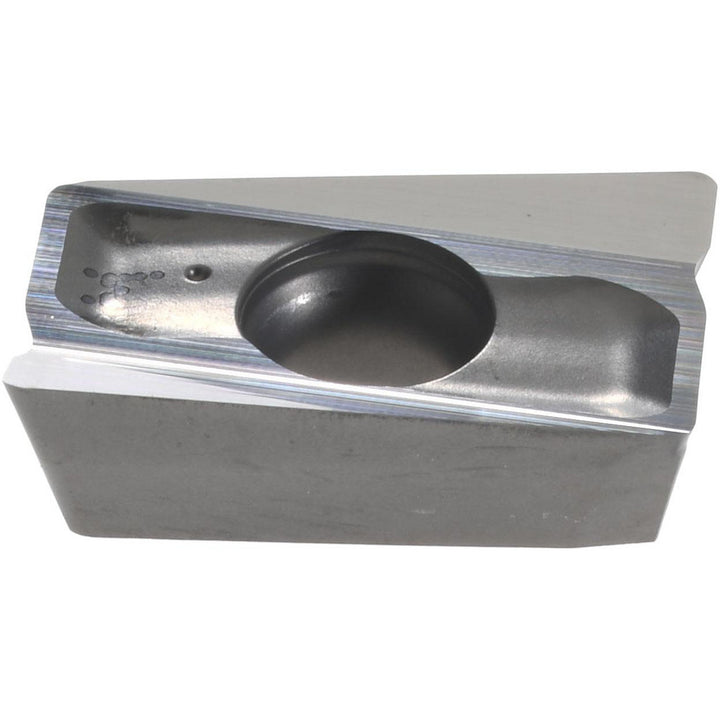

APCT160408FR-HS Solid Carbide Insert, Grade IN30M - Ingersoll Cutting Tools 5802407

Ingersoll Cutting Tools

APCT160408FR-HS Solid Carbide Insert, Grade IN30M - Ingersoll Cutting Tools 5802407

MFR# 5802407ISO/ANSI# APCT160408FR-HSSeries APLS

$29.49List $37.10 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeIN30M
MaterialSolid Carbide

Description

The Ingersoll Cutting Tools 5802407 is a APCT160408FR-HS solid carbide indexable insert, grade IN30M. Suited for non-ferrous metal.

Specifications

Ansi codeAPLS53R01 S IN30M
Chip breakerNone
Coating processUncoated
Corner radius in1/32
Cutter series compatibility12J1B; 12N1B; 12S1B; 22J3B; 22J5B; 2J1B
Cutting edge effective length0.6000
Cutting edge styleSharp
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size53
Insert size code53
Insert styleAPLS
Iso codeAPCT160408FR-HS
Length0.6370
Length range0.6000 to 0.6500
Manufacturers catalog number5802407
Manufacturer gradeIN30M
Material applicationNon-Ferrous Metal
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2100
Thickness range0.2000 to 0.2200
Width in3/8
