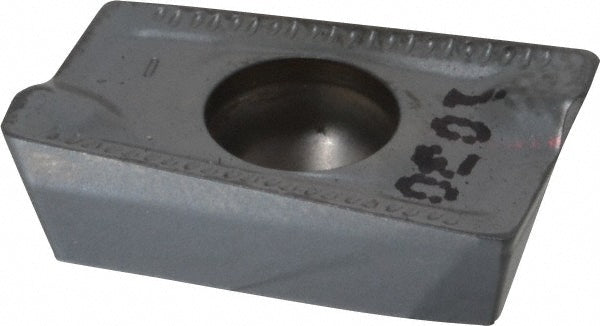

APKT160408R-HR Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5802439

Ingersoll Cutting Tools

APKT160408R-HR Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5802439

MFR# 5802439ISO/ANSI# APKT160408R-HRSeries APKX

$19.39List $24.40 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeIN1030
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5802439 is a APKT160408R-HR solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPKX53R01 IN1030
Chip breakerHR
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibility12J1B; 12N1B; 12S1B; 22J3B; 22J5B; 2J1B
Cutting edge effective length0.6000
Cutting edge styleSharp
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size53
Insert size code53
Insert styleAPKX
Iso codeAPKT160408R-HR
Length0.6370
Length range0.6000 to 0.6500
Manufacturers catalog number5802439
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2070
Thickness range0.2000 to 0.2200
Width in3/8
