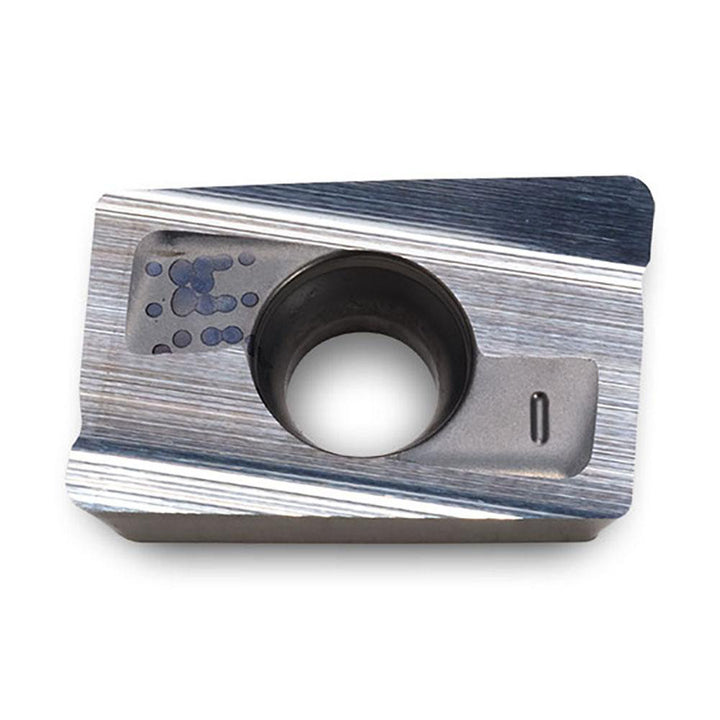

APCT120308FR-HS IN30M Solid Carbide Insert, Grade IN30M - Ingersoll Cutting Tools 5802476

MFR# 5802476ISO/ANSI# APCT120308FR-HS IN30MSeries APLS

$25.68List $32.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN30M
MaterialSolid Carbide

Description

The Ingersoll Cutting Tools 5802476 is a APCT120308FR-HS IN30M solid carbide indexable insert, grade IN30M. Suited for non-ferrous metal.

Specifications

Ansi codeAPLS42R01 S IN30M
Chip breakerHS
Coating processUncoated
Corner radius in1/32
Cutter series compatibility12_1Q; 12J1Q; 12S1Q; 22J*Q; 22J3Q; 2J1Q
Cutting edge effective length0.4700
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.3120
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size42
Insert size code42
Insert styleAPLS
Iso codeAPCT120308FR-HS IN30M
Length0.4800
Length range0.4500 to 0.5000
Manufacturers catalog number5802476
Manufacturer gradeIN30M
Material applicationNon-Ferrous Metal
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1350
Thickness range0.1250 to 0.1500
Width0.3120
