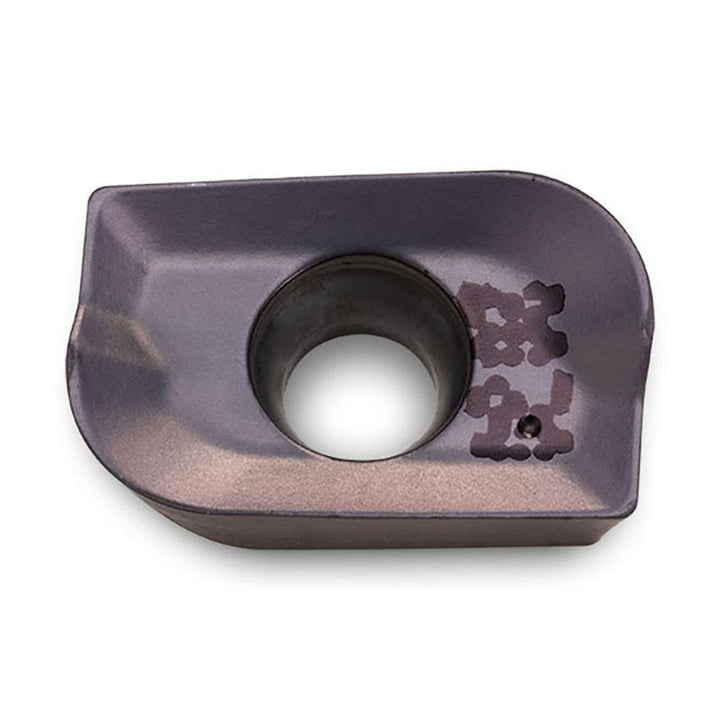

APKT120332R Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5802533

Ingersoll Cutting Tools

APKT120332R Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5802533

MFR# 5802533ISO/ANSI# APKT120332RSeries APEB

$19.99List $25.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN1030
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5802533 is a APKT120332R solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPEB42R04 IN1030
Chip breakerCommon
Coating finishTiCN
Coating processPVD
Corner radius in1/8
Cutter series compatibility12J1Q; 22J*Q; 22J3Q; 2J1Q
Cutting edge effective length0.4700
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.3120
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size42
Insert size code42
Insert styleAPEB
Iso codeAPKT120332R
Length0.4800
Length range0.4500 to 0.5000
Manufacturers catalog number5802533
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1400
Thickness range0.1250 to 0.1500
Width0.3120
