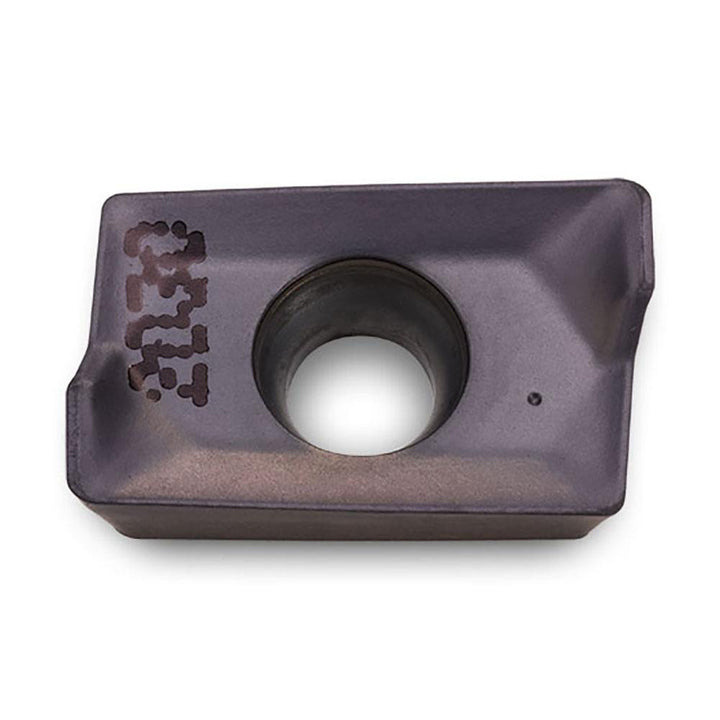

APKT120308R Solid Carbide Insert, Grade IN2030, TiAlN - Ingersoll Cutting Tools 5803037

Ingersoll Cutting Tools

APKT120308R Solid Carbide Insert, Grade IN2030, TiAlN - Ingersoll Cutting Tools 5803037

MFR# 5803037ISO/ANSI# APKT120308RSeries APLH

$20.34List $25.60 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN2030
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5803037 is a APKT120308R solid carbide indexable insert, grade IN2030, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeAPLH42R01 IN2030
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility12_1Q; 12J1Q; 12S1Q; 22J*Q; 22J3Q; 2J1Q
Cutting edge effective length0.4700
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.3120
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size42
Insert size code42
Insert styleAPLH
Iso codeAPKT120308R
Length0.4800
Length range0.4500 to 0.5000
Manufacturers catalog number5803037
Manufacturer gradeIN2030
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1500
Thickness range0.1500 to 0.1750
Width0.3120
