Ingersoll Cutting Tools

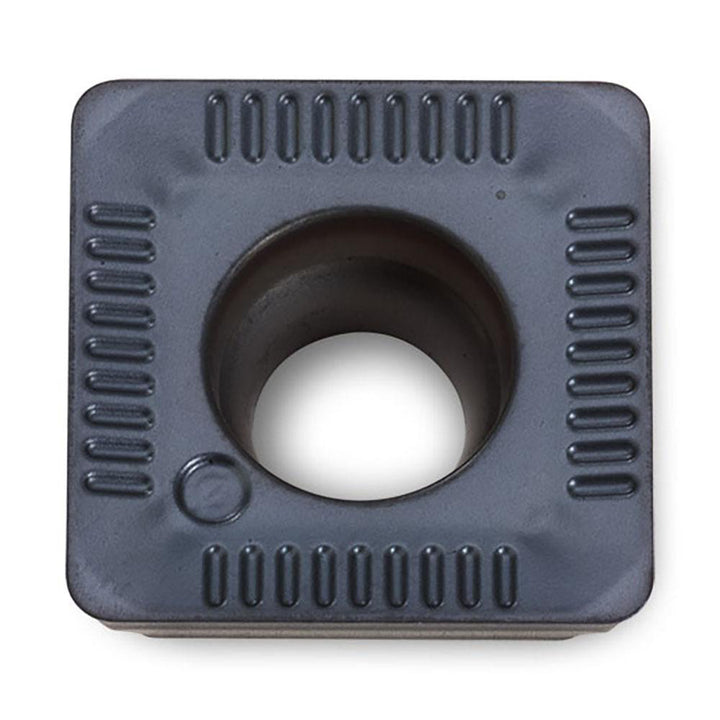

SHLT090308N-HR IN2005 Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5804825
MFR# 5804825ISO/ANSI# SHLT090308N-HR IN2005Series SHLP
$20.26List $25.95
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeIN2005
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5804825 is a SHLT090308N-HR IN2005 solid carbide indexable insert, grade IN2005, TiAlN coated. Suited for cast iron, stainless steel, steel, superalloys & titanium.
Specifications
Ansi codeSHLP32-01 IN2005
Chip breakerHR
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility15N1F; 15W7V; 25J3F
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size32
Insert size code32
Insert styleSHLP
Iso codeSHLT090308N-HR IN2005
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog number5804825
Manufacturer gradeIN2005
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material gradeMicrograin
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Stainless Steel; Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1500
Thickness range0.1500 to 0.1750
Width in3/8
