AOMT180508R IN2040 Solid Carbide Insert, Grade IN2040, TiAlN - Ingersoll Cutting Tools 5804904

Ingersoll Cutting Tools

AOMT180508R IN2040 Solid Carbide Insert, Grade IN2040, TiAlN - Ingersoll Cutting Tools 5804904

MFR# 5804904ISO/ANSI# AOMT180508R IN2040Series APEH

$23.97List $30.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN2040
MaterialSolid Carbide
CoatingTiAlN

Description

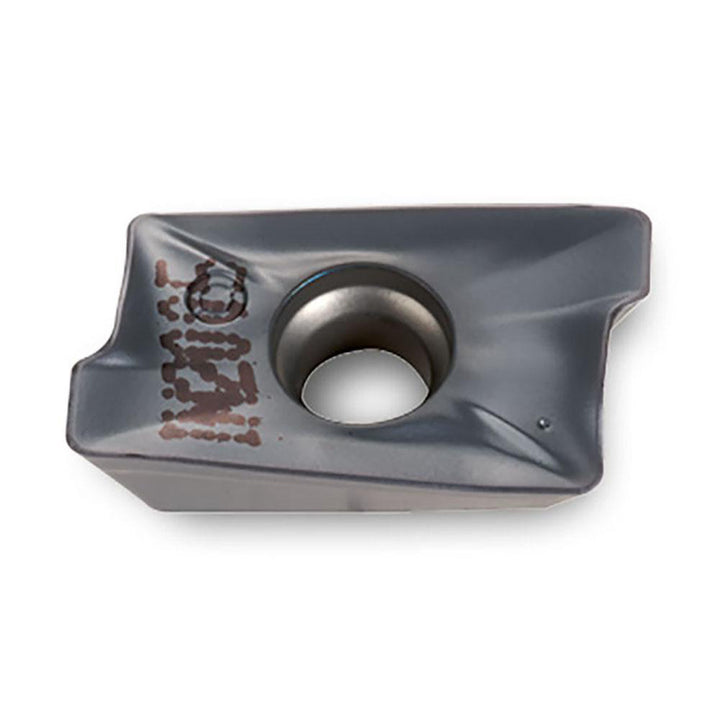

The Ingersoll Cutting Tools 5804904 is a AOMT180508R IN2040 solid carbide indexable insert, grade IN2040, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeAPEH64R01 IN2040
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility12J1E; 12S1E; 22J3E; 23J6G; 2J1E; 4W2A
Cutting edge effective length0.6600
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.4230
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size64
Insert size code64
Insert styleAPEH
Iso codeAOMT180508R IN2040
Length0.7670
Length range0.7000 to 0.9000
Manufacturers catalog number5804904
Manufacturer gradeIN2040
Material applicationSteel; Cast Iron
Material gradeFine Grain; Medium Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.4230
