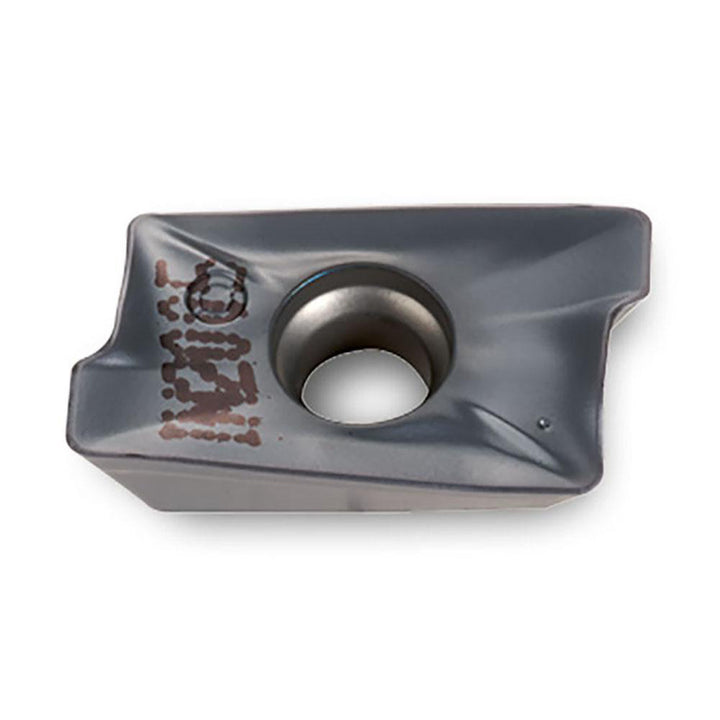

AOMT180508R IN2015 Solid Carbide Insert, Grade IN2015, TiAlN - Ingersoll Cutting Tools 5804905
MFR# 5804905ISO/ANSI# AOMT180508R IN2015Series APEH
$24.39List $30.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIN2015
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5804905 is a AOMT180508R IN2015 solid carbide indexable insert, grade IN2015, TiAlN coated. Suited for steel, cast iron, non-ferrous metal.
Specifications
Ansi codeAPEH64R01 IN2015
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility12J1E; 12S1E; 22J3E; 23J6G; 2J1E; 4W2A
Cutting edge effective length0.6600
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.4230
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size64
Insert size code64
Insert styleAPEH
Iso codeAOMT180508R IN2015
Length0.7670
Length range0.7000 to 0.9000
Manufacturers catalog number5804905
Manufacturer gradeIN2015
Material applicationSteel; Cast Iron; Non-Ferrous Metal
Material gradeFine Grain; Medium Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Non-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.4230
