Ingersoll Cutting Tools

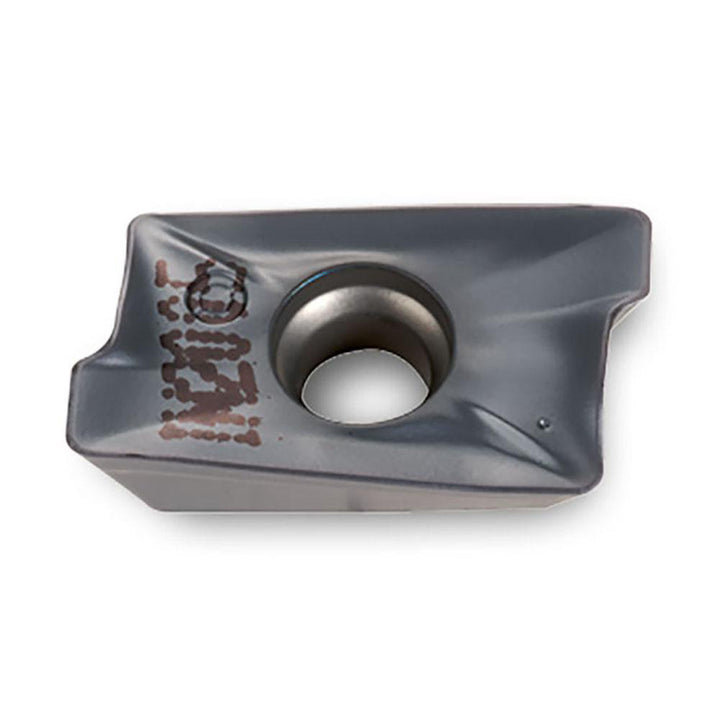

AOMT180508R IN2005 Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5804906
MFR# 5804906ISO/ANSI# AOMT180508R IN2005Series APEH
$23.97List $30.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIN2005
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5804906 is a AOMT180508R IN2005 solid carbide indexable insert, grade IN2005, TiAlN coated. Suited for cast iron, stainless steel, steel, superalloys & titanium.
Specifications
Ansi codeAPEH64R01 IN2005
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility12J1E; 12S1E; 22J3E; 23J6G; 2J1E; 4W2A
Cutting edge effective length0.6600
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.4230
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size64
Insert size code64
Insert styleAPEH
Iso codeAOMT180508R IN2005
Length0.7670
Length range0.7000 to 0.9000
Manufacturers catalog number5804906
Manufacturer gradeIN2005
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material gradeMicrograin
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Stainless Steel; Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.4230
