Ingersoll Cutting Tools

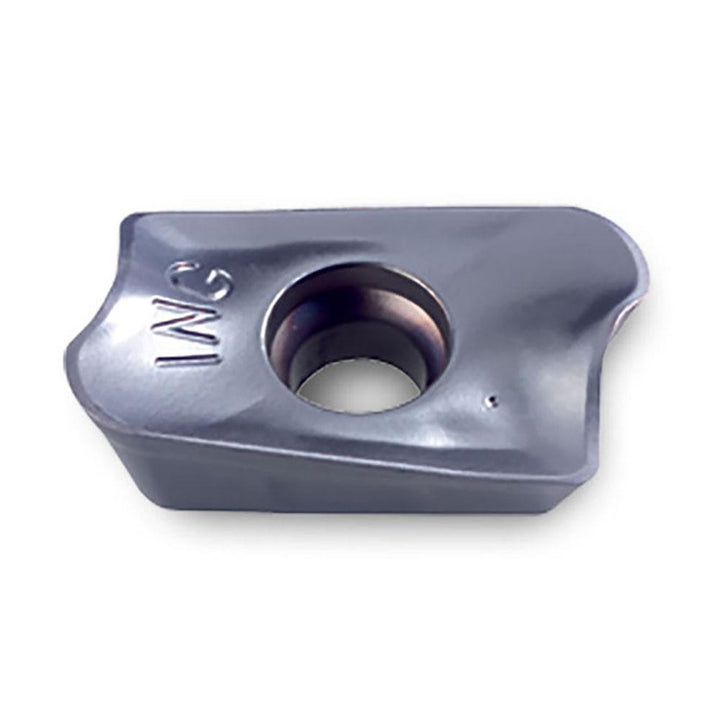

AOMT180532R IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5804912
MFR# 5804912ISO/ANSI# AOMT180532R IN1030Series APEB
$23.11List $29.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC27/64
ShapeParallelogram
GradeIN1030
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5804912 is a AOMT180532R IN1030 solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeAPEB64R04 IN1030
Chip breakerCommon
Coating finishTiCN
Coating processPVD
Corner radius in1/8
Cutter series compatibility12J1E; 23J6G; 2J1E; 4W2A
Cutting edge effective length0.6500
Cutting edge styleSharp
Included angle degree85
Inscribed circle in27/64
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size64
Insert size code64
Insert styleAPEB
Iso codeAOMT180532R IN1030
Length0.7670
Length range0.7000 to 0.9000
Manufacturers catalog number5804912
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in27/64
