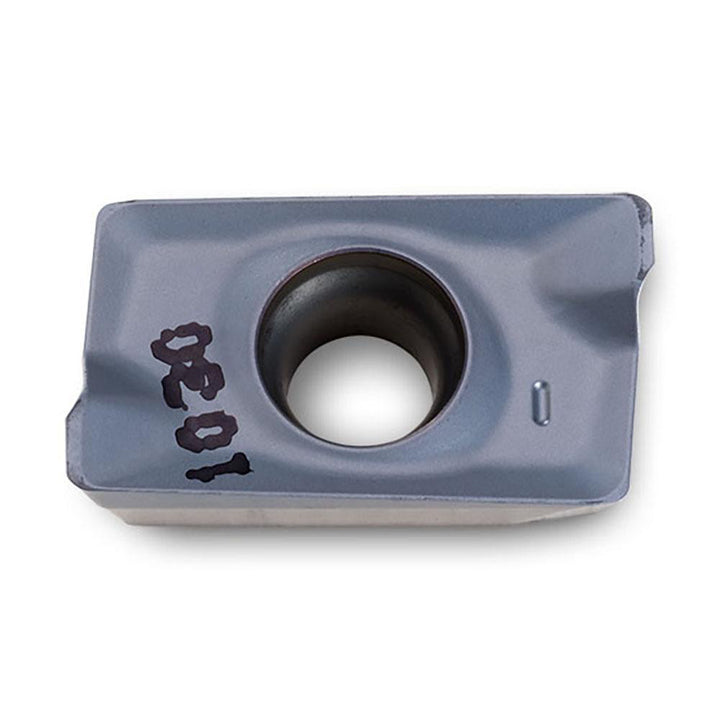

APKT160408R Solid Carbide Insert, Grade IN2015, TiAlN - Ingersoll Cutting Tools 5805303

Ingersoll Cutting Tools

APKT160408R Solid Carbide Insert, Grade IN2015, TiAlN - Ingersoll Cutting Tools 5805303

MFR# 5805303ISO/ANSI# APKT160408RSeries APLH

$25.18List $31.70 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeIN2015
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5805303 is a APKT160408R solid carbide indexable insert, grade IN2015, TiAlN coated. Suited for steel, cast iron, non-ferrous metal.

Specifications

Ansi codeAPLH53R01 IN2015
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility12J1B; 12N1B; 12S1B; 12T1B; 22J3B; 22J5B; 23J6G; 2J1B
Cutting edge effective length0.6000
Cutting edge styleSharp
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size53
Insert size code53
Insert styleAPLH
Iso codeAPKT160408R
Length0.6360
Length range0.6000 to 0.6500
Manufacturers catalog number5805303
Manufacturer gradeIN2015
Material applicationSteel; Cast Iron; Non-Ferrous Metal
Material gradeFine Grain; Medium Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Non-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2070
Thickness range0.2000 to 0.2200
Width in3/8
