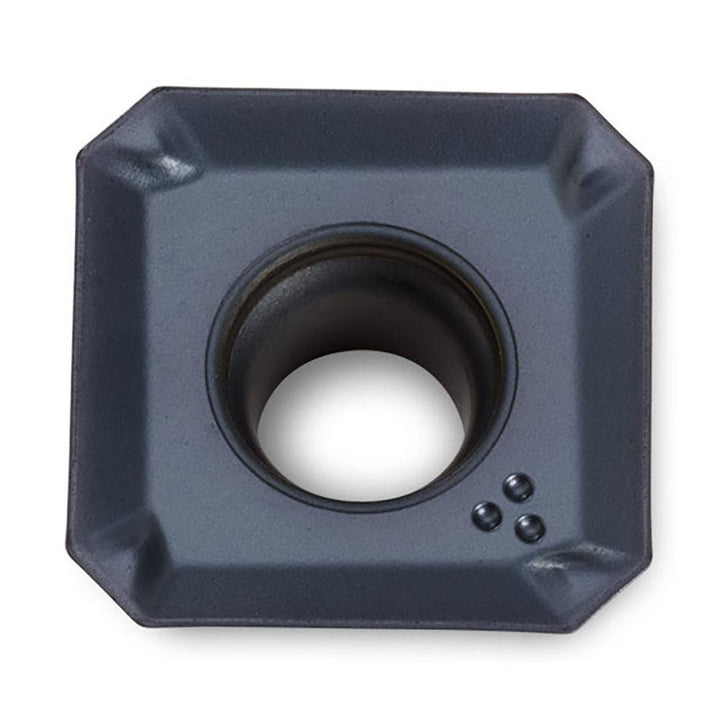

SEKT09T3AFN IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5805582

Ingersoll Cutting Tools

SEKT09T3AFN IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5805582

MFR# 5805582ISO/ANSI# SEKT09T3AFN IN1030Series SEKT

$15.10List $19.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN1030
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5805582 is a SEKT09T3AFN IN1030 solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSEKT09T3 IN1030
Chip breakerNone
Coating finishTiCN
Coating processPVD
Corner radius0.0100
Cutter series compatibility15N1F_R00; 5N6F
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T3
Insert styleSEKT
Iso codeSEKT09T3AFN IN1030
Length0.3780
Length range0.3200 to 0.4000
Manufacturers catalog number5805582
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1650
Thickness range0.1500 to 0.1750
Width0.3780
