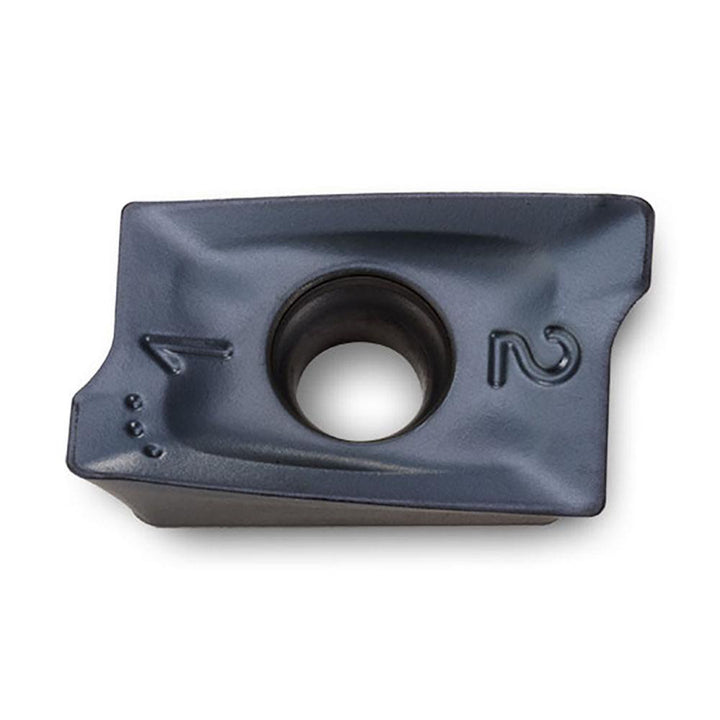

AOMT1103PD-R Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5805584

Ingersoll Cutting Tools

AOMT1103PD-R Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5805584

MFR# 5805584ISO/ANSI# AOMT1103PD-RSeries AOMT

$21.87List $28.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN2005
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5805584 is a AOMT1103PD-R solid carbide indexable insert, grade IN2005, TiAlN coated. Suited for cast iron, stainless steel, steel, superalloys & titanium.

Specifications

Ansi codeAOMT1103PD-R IN2005
Chip breakerR
Coating finishTiAlN
Coating processPVD
Corner radius0.0150
Cutter series compatibility12J1F; 2J1F
Cutting edge effective length0.4700
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.2830
Inscribed circle range0.2000 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code1103
Insert styleAOMT
Iso codeAOMT1103PD-R
Length0.4490
Length range0.4000 to 0.4500
Manufacturers catalog number5805584
Manufacturer gradeIN2005
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material gradeMicrograin
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Stainless Steel; Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1550
Thickness range0.1500 to 0.1750
Width0.2830
