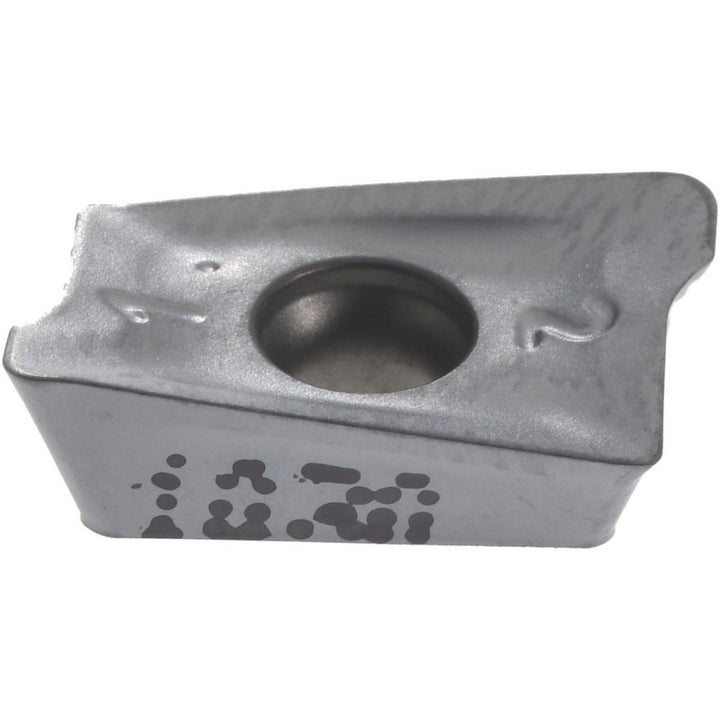

AOMT110308R Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5809422

Ingersoll Cutting Tools

AOMT110308R Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5809422

MFR# 5809422ISO/ANSI# AOMT110308RSeries AOMT

$21.87List $28.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN1030
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5809422 is a AOMT110308R solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAOMT110308R IN1030
Chip breakerNone
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibility12J1F; 2J1F
Cutting edge effective length0.4700
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.2830
Inscribed circle range0.2000 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code110308
Insert styleAOMT
Iso codeAOMT110308R
Length0.4490
Length range0.4000 to 0.4500
Manufacturers catalog number5809422
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1550
Thickness range0.1500 to 0.1750
Width0.2830
