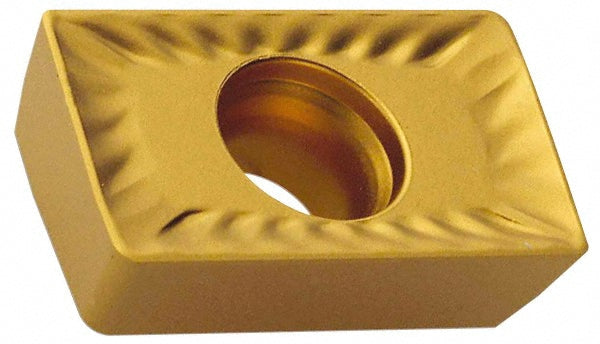

APKT080304R IN2005 Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5809718

Ingersoll Cutting Tools

APKT080304R IN2005 Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5809718

MFR# 5809718ISO/ANSI# APKT080304R IN2005Series APLH

$16.73List $21.05 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN2005
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5809718 is a APKT080304R IN2005 solid carbide indexable insert, grade IN2005, TiAlN coated. Suited for cast iron, stainless steel, steel, superalloys & titanium.

Specifications

Ansi codeAPLH32R01 IN2005
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0150
Cutter series compatibility12J1M
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.2470
Inscribed circle range0.2000 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size32
Insert size code32
Insert styleAPLH
Iso codeAPKT080304R IN2005
Length0.3110
Length range0.0000 to 0.3200
Manufacturers catalog number5809718
Manufacturer gradeIN2005
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material gradeMicrograin
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Stainless Steel; Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1360
Thickness range0.1250 to 0.1500
Width0.2470
