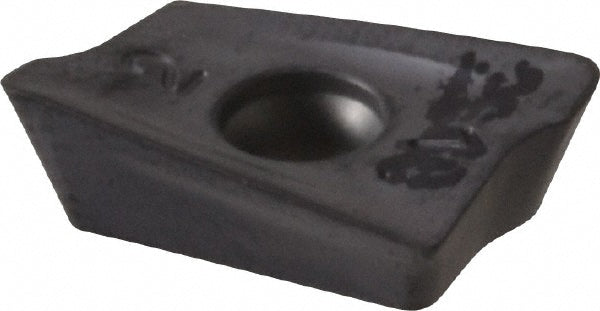

AOMT110308R Solid Carbide Insert, Grade IN2040, TiAlN - Ingersoll Cutting Tools 5809739

Ingersoll Cutting Tools

AOMT110308R Solid Carbide Insert, Grade IN2040, TiAlN - Ingersoll Cutting Tools 5809739

MFR# 5809739ISO/ANSI# AOMT110308RSeries AOMT

$22.25List $28.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN2040
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5809739 is a AOMT110308R solid carbide indexable insert, grade IN2040, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeAOMT110308R IN2040
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility12J1F; 2J1F
Cutting edge effective length0.4700
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.2830
Inscribed circle range0.2000 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code110308
Insert styleAOMT
Iso codeAOMT110308R
Length0.4490
Length range0.4000 to 0.4500
Manufacturers catalog number5809739
Manufacturer gradeIN2040
Material applicationSteel; Cast Iron
Material gradeFine Grain; Medium Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1550
Thickness range0.1500 to 0.1750
Width0.2830
