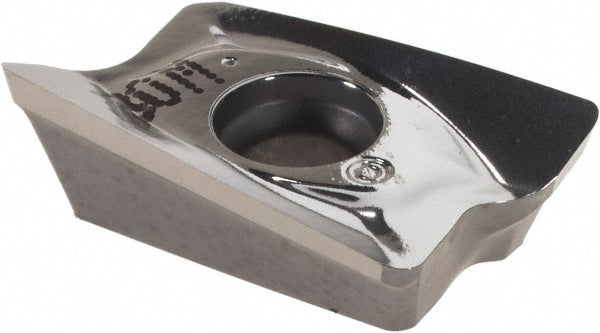

AOMT180508FR-HS IN30M Solid Carbide Insert, Grade IN30M - Ingersoll Cutting Tools 5811180

Ingersoll Cutting Tools

AOMT180508FR-HS IN30M Solid Carbide Insert, Grade IN30M - Ingersoll Cutting Tools 5811180

MFR# 5811180ISO/ANSI# AOMT180508FR-HS IN30MSeries AOMT

$26.54List $33.40 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN30M
MaterialSolid Carbide

Description

The Ingersoll Cutting Tools 5811180 is a AOMT180508FR-HS IN30M solid carbide indexable insert, grade IN30M. Suited for non-ferrous metal.

Specifications

Ansi codeAOMT180508FR-HS S IN30M
Chip breakerHS
Coating processUncoated
Corner radius in1/32
Cutter series compatibility12J1E; 12S1E; 4W2A
Cutting edge effective length0.6600
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.4240
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180508
Insert styleAOMT
Iso codeAOMT180508FR-HS IN30M
Length0.7670
Length range0.7000 to 0.9000
Manufacturers catalog number5811180
Manufacturer gradeIN30M
Material applicationNon-Ferrous Metal
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2400
Thickness range0.2350 to 0.2500
Width0.4240
