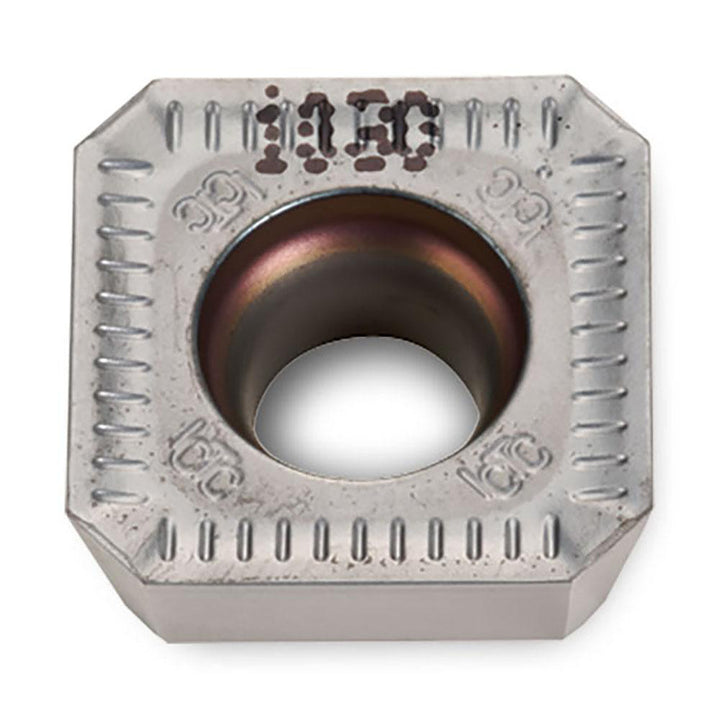

SHLT1405APTN-HR IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5811262

Ingersoll Cutting Tools

SHLT1405APTN-HR IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5811262

MFR# 5811262ISO/ANSI# SHLT1405APTN-HR IN1030Series SHLT

$25.07List $31.55 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN1030
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5811262 is a SHLT1405APTN-HR IN1030 solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSHLT1405APTN-HR IN1030
Chip breakerHR
Coating finishTiCN
Coating processPVD
Corner radius0.0100
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.5590
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code1405
Insert styleSHLT
Iso codeSHLT1405APTN-HR IN1030
Length0.5590
Length range0.5000 to 0.6000
Manufacturers catalog number5811262
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2290
Thickness range0.2200 to 0.2350
Width0.5590
