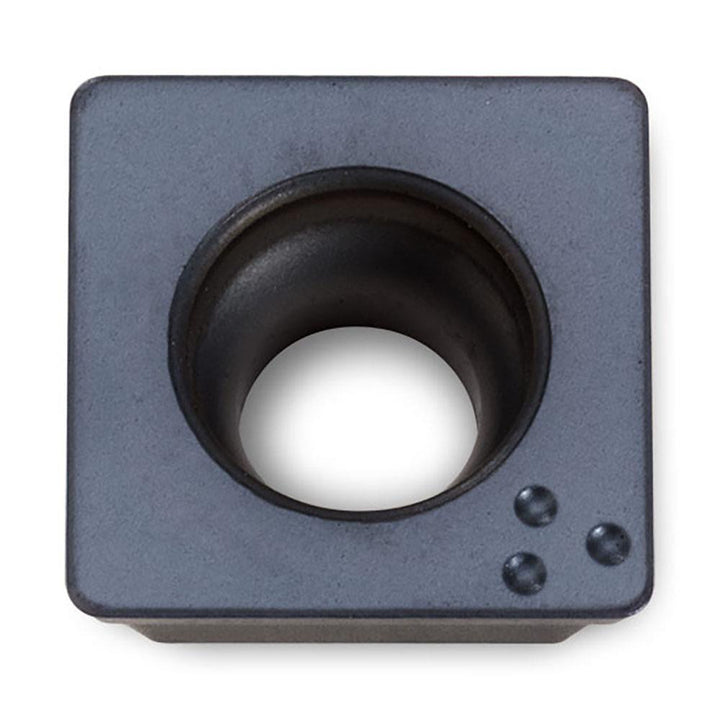

SDMW080305TN IN2030 Solid Carbide Insert, Grade IN2030, TiAlN - Ingersoll Cutting Tools 5811354

Ingersoll Cutting Tools

SDMW080305TN IN2030 Solid Carbide Insert, Grade IN2030, TiAlN - Ingersoll Cutting Tools 5811354

MFR# 5811354ISO/ANSI# SDMW080305TN IN2030Series SDMW

$18.63List $23.45 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN2030
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5811354 is a SDMW080305TN IN2030 solid carbide indexable insert, grade IN2030, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeSDMW080305TN I IN2030
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0200
Cutter series compatibility15_1E; 15J1E; 15N1E; 15T1E; 5J1E
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.3150
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size08
Insert size code080305
Insert styleSDMW
Iso codeSDMW080305TN IN2030
Length0.3150
Length range0.0000 to 0.3200
Manufacturers catalog number5811354
Manufacturer gradeIN2030
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1380
Thickness range0.1250 to 0.1500
Width0.3150
