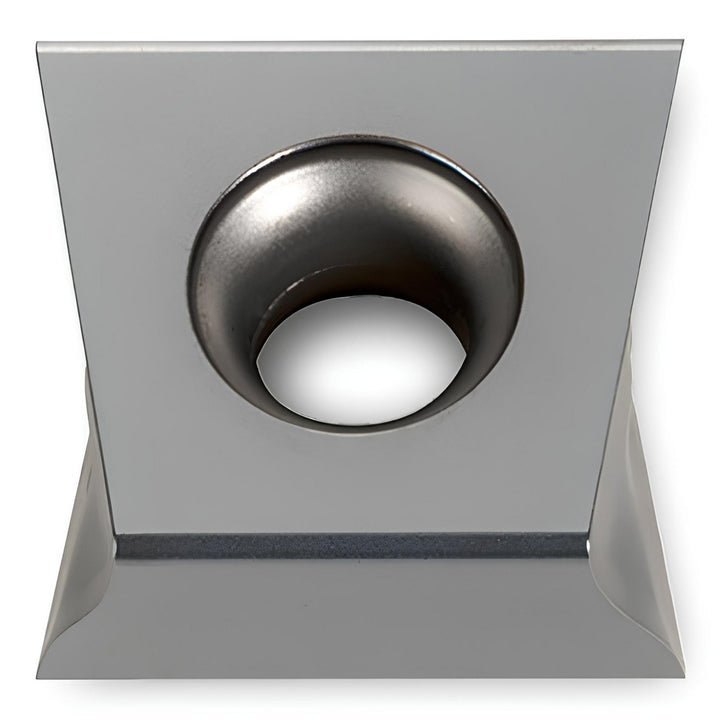

DPM424-001 A IN2040 Solid Carbide Insert, Grade IN2040, TiAlN - Ingersoll Cutting Tools 5811555
MFR# 5811555ISO/ANSI# DPM424-001 A IN2040Series DPM
$26.50List $33.35
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIN2040
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5811555 is a DPM424-001 A IN2040 solid carbide indexable insert, grade IN2040, TiAlN coated. Suited for steel, cast iron.
Specifications
Ansi codeDPM424-001 A IN2040
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility3SJ6
Cutting edge styleCorner Rounded
Inscribed circle0.6450
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size42
Insert size code424
Insert styleDPM
Iso codeDPM424-001 A IN2040
Length0.5910
Length of cut (mm)15.0100
Length range0.5000 to 0.6000
Manufacturers catalog number5811555
Manufacturer gradeIN2040
Material applicationSteel; Cast Iron
Material gradeFine Grain; Medium Grain
Maximum depth of cut0.5910
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle11
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.3000
Thickness range0.2500 to 0.3500
Width0.6450
