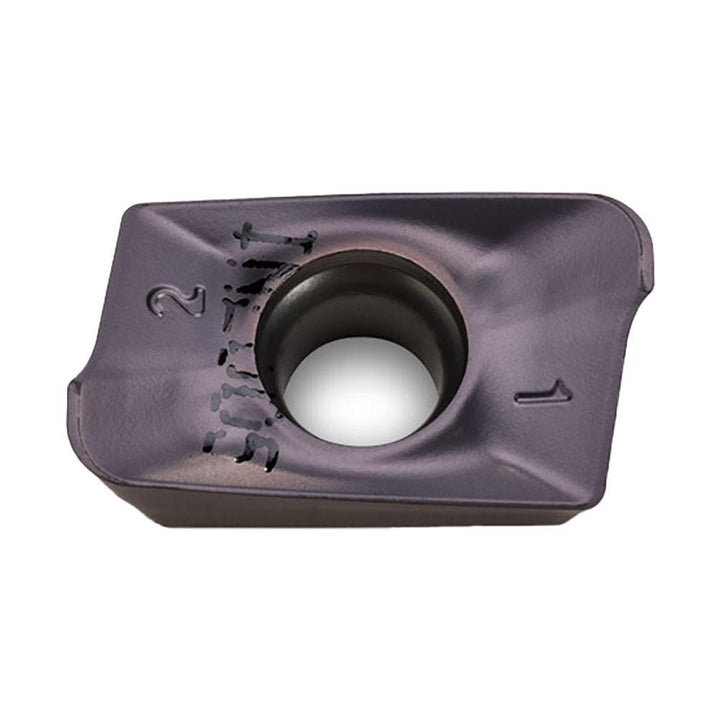

AOMT120416R IN2005 Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5811662

Ingersoll Cutting Tools

AOMT120416R IN2005 Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5811662

MFR# 5811662ISO/ANSI# AOMT120416R IN2005Series AOMT

$22.33List $28.10 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC21/64
ShapeParallelogram
GradeIN2005
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5811662 is a AOMT120416R IN2005 solid carbide indexable insert, grade IN2005, TiAlN coated. Suited for cast iron, stainless steel, steel, superalloys & titanium.

Specifications

Ansi codeAOMT120416R IN2005
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0620
Cutter series compatibility12J1X; 12V1X; 22J3X; 22N3X; 2J1X
Cutting edge effective length0.4900
Cutting edge styleSharp
Included angle degree85
Inscribed circle in21/64
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120416
Insert styleAOMT
Iso codeAOMT120416R IN2005
Length0.5730
Length range0.5000 to 0.6000
Manufacturers catalog number5811662
Manufacturer gradeIN2005
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material gradeMicrograin
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Stainless Steel; Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width in21/64
