Ingersoll Cutting Tools

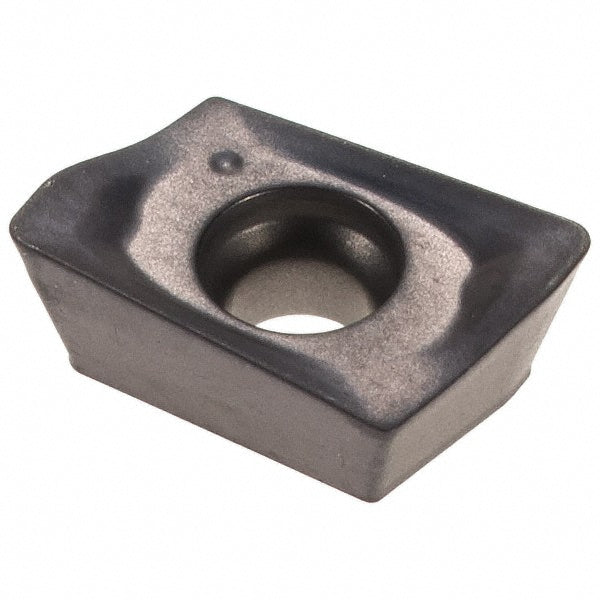

AOMT060204R IN2005 Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5811779
MFR# 5811779ISO/ANSI# AOMT060204R IN2005Series AOMT
$16.79List $21.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIN2005
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5811779 is a AOMT060204R IN2005 solid carbide indexable insert, grade IN2005, TiAlN coated. Suited for cast iron, stainless steel, steel, superalloys & titanium.
Specifications
Ansi codeAOMT060204R IN2005
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0150
Cutter series compatibility12_1D; 12J1D; 22J3D
Cutting edge effective length0.2200
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.1660
Inscribed circle range0.1000 to 0.2000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size06
Insert size code060204
Insert styleAOMT
Iso codeAOMT060204R IN2005
Length0.2280
Length range0.0000 to 0.3200
Manufacturers catalog number5811779
Manufacturer gradeIN2005
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material gradeMicrograin
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Stainless Steel; Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1030
Thickness range0.1000 to 0.1250
Width0.1660
