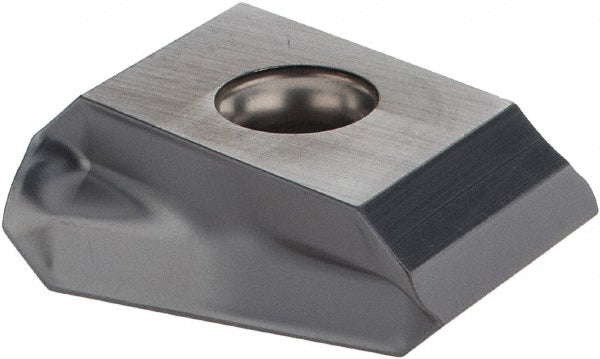

DPM436R045 IN2005 Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5811936
MFR# 5811936ISO/ANSI# DPM436R045 IN2005Series DPM
$35.49List $45.45
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC63/64
ShapeParallelogram
GradeIN2005
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5811936 is a DPM436R045 IN2005 solid carbide indexable insert, grade IN2005, TiAlN coated. Suited for cast iron, stainless steel, steel, superalloys & titanium.
Specifications
Ansi codeDPM436R045 A IN2005
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0100
Cutter series compatibilitySN2R
Cutting edge styleCorner Rounded
Inscribed circle in63/64
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size43
Insert size code436
Insert styleDPM
Iso codeDPM436R045 IN2005
Length0.6950
Length range0.6500 to 0.7000
Manufacturers catalog number5811936
Manufacturer gradeIN2005
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material gradeMicrograin
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Stainless Steel; Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in3/8
Thickness range0.3500 to 0.5000
Width0.6950
