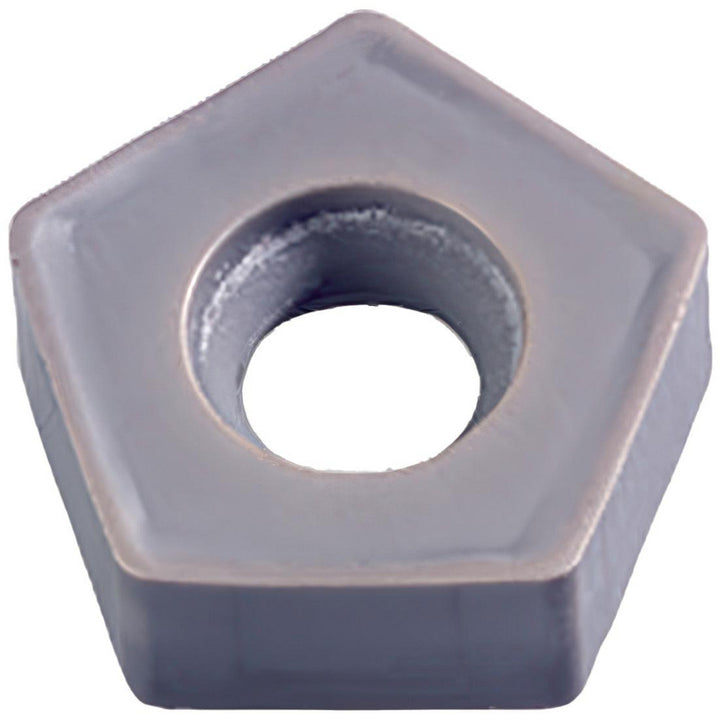

PNCU0805GNR JIN70N Silicon Nitride Insert, Grade IN70N, Si3N4 - Ingersoll Cutting Tools 5811959
MFR# 5811959ISO/ANSI# PNCU0805GNR JIN70NSeries PNCU
$48.71List $61.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapePentagon
GradeIN70N
MaterialSilicon Nitride
CoatingSi3N4
Description
The Ingersoll Cutting Tools 5811959 is a PNCU0805GNR JIN70N silicon nitride indexable insert, grade IN70N, Si3N4 coated. Suited for cast iron.
Specifications
Ansi codePNCU0805GNR J IN70N
Chip breakerGNR
Coating finishSi3N4
Coating processUncoated
Corner radius in1/32
Cutter series compatibility4W2A; DM5G
Cutting edge styleCorner Rounded
Included angle degree108
Inscribed circle0.4500
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSilicon Nitride
Insert shapePentagon
Insert size08
Insert size code0805
Insert stylePNCU
Iso codePNCU0805GNR JIN70N
Length0.4500
Length range0.4500 to 0.5000
Manufacturers catalog number5811959
Manufacturer gradeIN70N
Material applicationCast Iron
Multi use toolNo
Number of cutting edges10
Primary workpiece materialCast Iron
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1900
Thickness range0.1850 to 0.2000
Width0.4500
