Ingersoll Cutting Tools

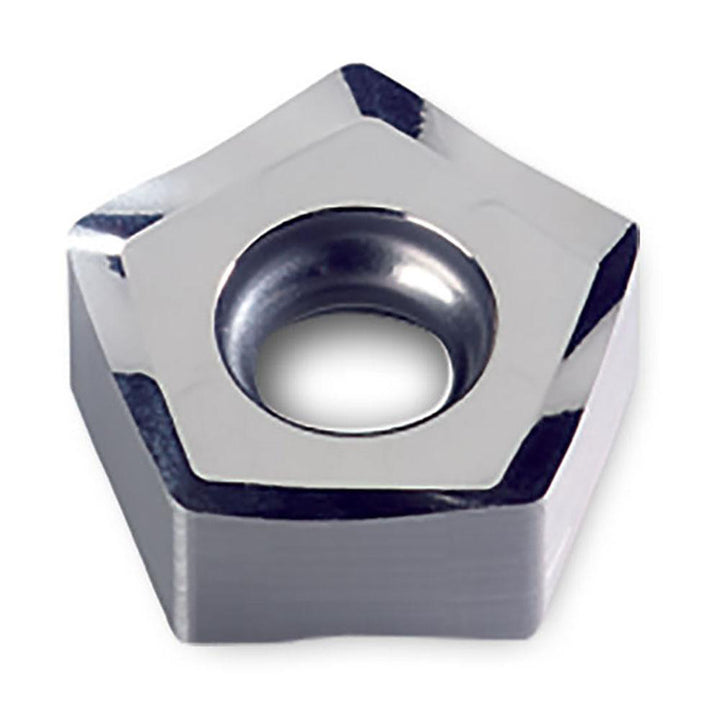

PNCU0805GNFR-P IN05S Solid Carbide Insert, Grade IN05S - Ingersoll Cutting Tools 5812006
MFR# 5812006ISO/ANSI# PNCU0805GNFR-P IN05SSeries PNCU
$28.81List $36.25
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapePentagon
GradeIN05S
MaterialSolid Carbide
Description
The Ingersoll Cutting Tools 5812006 is a PNCU0805GNFR-P IN05S solid carbide indexable insert, grade IN05S. Suited for non-ferrous metal.
Specifications
Ansi codePNCU0805GNFR-P S IN05S
Chip breakerP
Coating processUncoated
Corner radius0.0300
Cutter series compatibility4W2A; DM5G
Cutting edge styleCorner Rounded
Included angle degree108
Inscribed circle0.4500
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapePentagon
Insert size08
Insert size code0805
Insert stylePNCU
Iso codePNCU0805GNFR-P IN05S
Length0.4500
Length range0.4500 to 0.5000
Manufacturers catalog number5812006
Manufacturer gradeIN05S
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Multi use toolNo
Number of cutting edges10
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
Width0.4500
