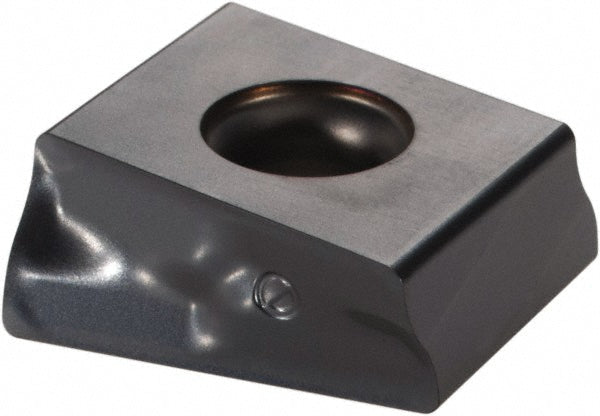

DPM434L050 IN2005 Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5812146

MFR# 5812146ISO/ANSI# DPM434L050 IN2005Series DPM

$33.10List $41.65 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN2005
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5812146 is a DPM434L050 IN2005 solid carbide indexable insert, grade IN2005, TiAlN coated. Suited for cast iron, stainless steel, steel, superalloys & titanium.

Specifications

Ansi codeDPM434L050 K IN2005
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0620
Cutter series compatibilitySHU
Cutting edge styleCorner Rounded
Inscribed circle0.7090
Inscribed circle range0.7000 to 1.0000
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size43
Insert size code434
Insert styleDPM
Iso codeDPM434L050 IN2005
Length0.5510
Length range0.5000 to 0.6000
Manufacturers catalog number5812146
Manufacturer gradeIN2005
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material gradeMicrograin
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Stainless Steel; Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.3000
Thickness range0.2500 to 0.3500
Width0.6580
