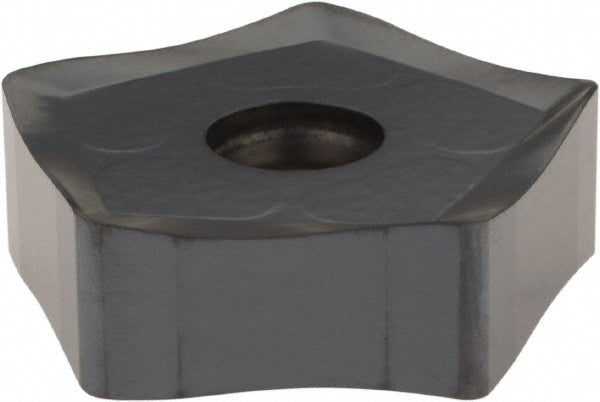

PNCU1708GNTR IN2030 Solid Carbide Insert, Grade IN2030, TiAlN - Ingersoll Cutting Tools 5812174
MFR# 5812174ISO/ANSI# PNCU1708GNTR IN2030Series PNCU
$39.12List $50.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapePentagon
GradeIN2030
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5812174 is a PNCU1708GNTR IN2030 solid carbide indexable insert, grade IN2030, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codePNCU1708GNTR J IN2030
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0600
Cutter series compatibilityDM2Q; DM6Q
Cutting edge styleCorner Rounded
Included angle degree108
Inscribed circle0.9250
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapePentagon
Insert size17
Insert size code1708
Insert stylePNCU
Iso codePNCU1708GNTR IN2030
Length0.9250
Length range0.9000 to 1.0000
Manufacturers catalog number5812174
Manufacturer gradeIN2030
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges10
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in21/64
Thickness range0.2500 to 0.3500
Width0.9250
