Ingersoll Cutting Tools

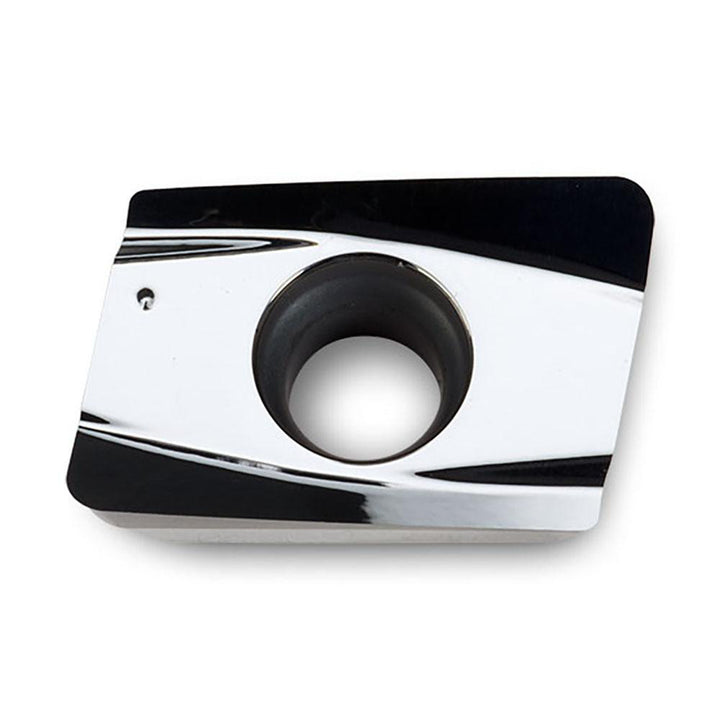

BOCT09T308FR-P IN10K Solid Carbide Insert, Grade IN10K - Ingersoll Cutting Tools 5812703
MFR# 5812703ISO/ANSI# BOCT09T308FR-P IN10KSeries BOCT
$24.79List $31.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIN10K
MaterialSolid Carbide
Description
The Ingersoll Cutting Tools 5812703 is a BOCT09T308FR-P IN10K solid carbide indexable insert, grade IN10K. Suited for non-ferrous metal.
Specifications
Ansi codeBOCT09T308FR-P I IN10K
Chip breakerP
Coating processUncoated
Corner radius in1/32
Cutter series compatibility12J1P; 12L1P; 22J3P; 2J1P
Cutting edge effective length0.3500
Cutting edge styleSharp
Included angle degree82
Inscribed circle0.2600
Inscribed circle range0.2000 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code09T308
Insert styleBOCT
Iso codeBOCT09T308FR-P IN10K
Length0.3500
Length range0.3200 to 0.4000
Manufacturers catalog number5812703
Manufacturer gradeIN10K
Material applicationNon-Ferrous Metal
Material gradeFine Grain
Multi use toolNo
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1440
Thickness range0.1250 to 0.1500
Width0.2600
