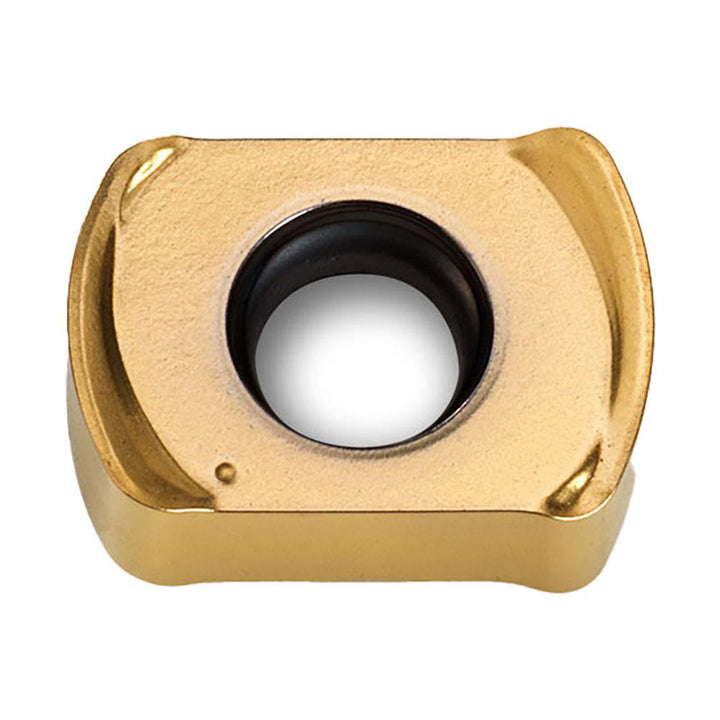

UNLU0603MOTR IN2505 Solid Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5812830

MFR# 5812830ISO/ANSI# UNLU0603MOTR IN2505Series UNLU

$19.32List $24.75 Save 21%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeIrregular
GradeIN2505
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5812830 is a UNLU0603MOTR IN2505 solid carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeUNLU0603M0TR IN2505
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0400
Cutter series compatibility1TG1F; TG1F
Cutting edge styleChamfered
Inscribed circle0.2510
Inscribed circle range0.2000 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeIrregular
Insert size06
Insert size code0603
Insert styleUNLU
Iso codeUNLU0603MOTR IN2505
Length0.3540
Length range0.3200 to 0.4000
Manufacturers catalog number5812830
Manufacturer gradeIN2505
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1420
Thickness range0.1250 to 0.1500
Width0.2510
