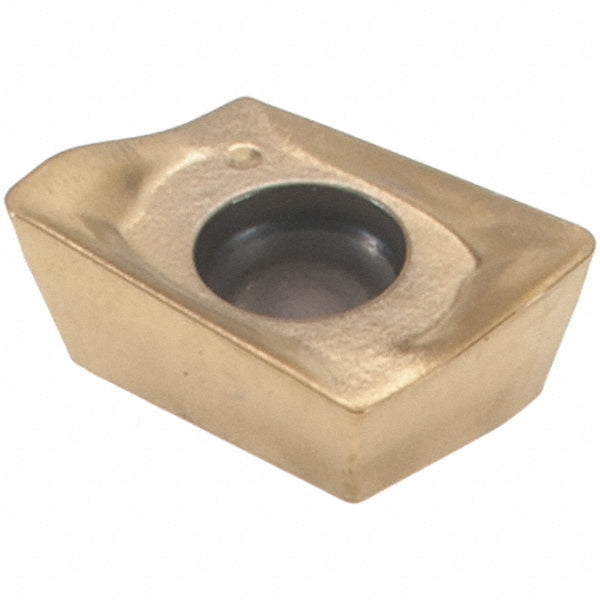

AOMT060204R IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5813372

Ingersoll Cutting Tools

AOMT060204R IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5813372

MFR# 5813372ISO/ANSI# AOMT060204R IN2530Series AOMT

$16.79List $21.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN2530
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5813372 is a AOMT060204R IN2530 solid carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAOMT060204R IN2530
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0150
Cutter series compatibility12_1D; 12J1D; 22J3D
Cutting edge effective length0.2200
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.1660
Inscribed circle range0.1000 to 0.2000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size06
Insert size code060204
Insert styleAOMT
Iso codeAOMT060204R IN2530
Length0.2280
Length range0.0000 to 0.3200
Manufacturers catalog number5813372
Manufacturer gradeIN2530
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1030
Thickness range0.1000 to 0.1250
Width0.1660
