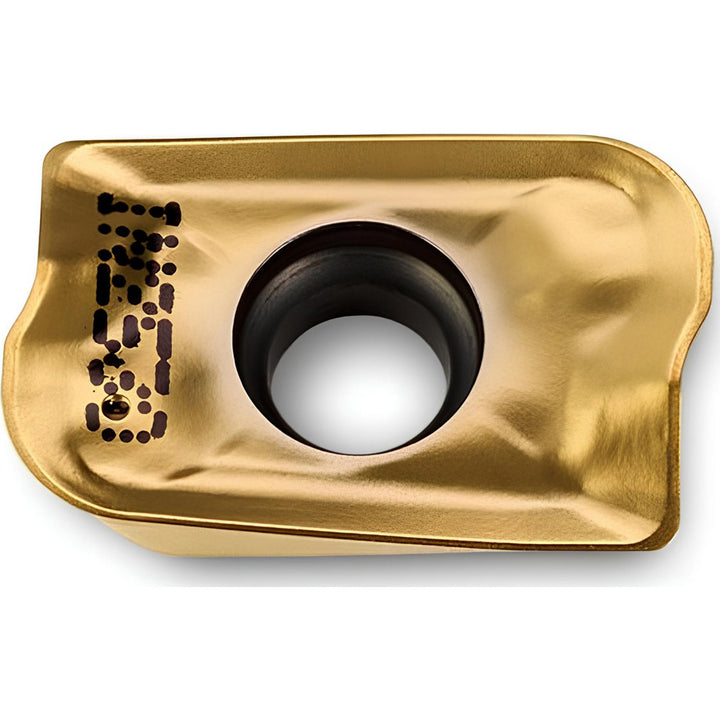

AOMT170532R IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5813380
MFR# 5813380ISO/ANSI# AOMT170532R IN2530Series AOMT
$20.07List $25.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC27/64
ShapeParallelogram
GradeIN2530
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5813380 is a AOMT170532R IN2530 solid carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeAOMT170532R IN2530
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/8
Cutter series compatibility12J1G; 12L1G; 22J3G; 22J5G; 2J1G; 2L1G
Cutting edge styleSharp
Included angle degree85
Inscribed circle in27/64
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170532
Insert styleAOMT
Iso codeAOMT170532R IN2530
Length0.6830
Length of cut (mm)15.3900
Length range0.6500 to 0.7000
Manufacturers catalog number5813380
Manufacturer gradeIN2530
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut0.6060
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.4210
