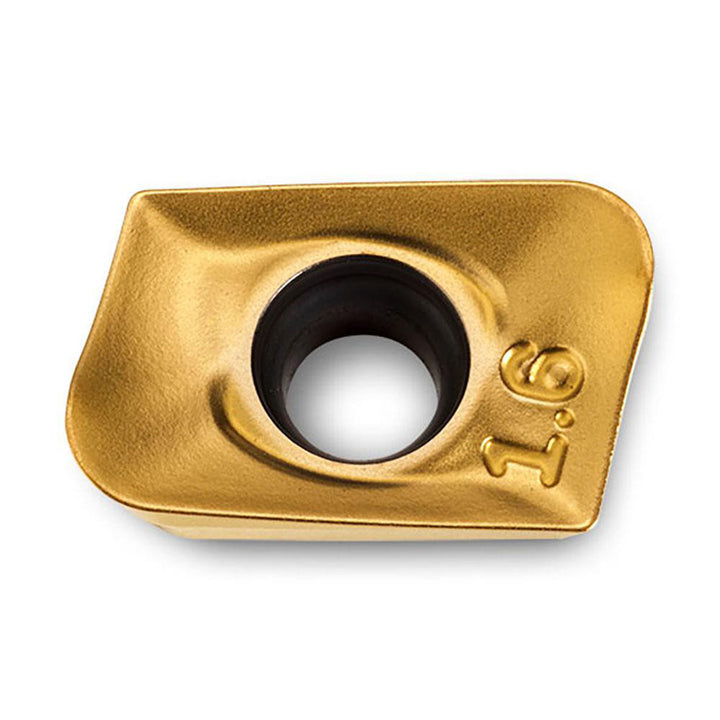

BOMT09T316R IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5813388

Ingersoll Cutting Tools

BOMT09T316R IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5813388

MFR# 5813388ISO/ANSI# BOMT09T316R IN2530Series BOMT

$18.62List $23.85 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN2530
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5813388 is a BOMT09T316R IN2530 solid carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeBOMT09T316R I IN2530
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0620
Cutter series compatibility12J1P; 12L1P; 22J3P; 2J1P
Cutting edge effective length0.3500
Cutting edge styleSharp
Included angle degree82
Inscribed circle0.2590
Inscribed circle range0.2000 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code09T316
Insert styleBOMT
Iso codeBOMT09T316R IN2530
Length0.4210
Length range0.4000 to 0.4500
Manufacturers catalog number5813388
Manufacturer gradeIN2530
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1480
Thickness range0.1250 to 0.1500
Width0.2590
