WNGU130608R IN2540 Solid Carbide Insert, Grade IN2540, TiAlN - Ingersoll Cutting Tools 5813436

MFR# 5813436ISO/ANSI# WNGU130608R IN2540Series WNGU

$32.77List $41.25 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeIN2540
MaterialSolid Carbide
CoatingTiAlN

Description

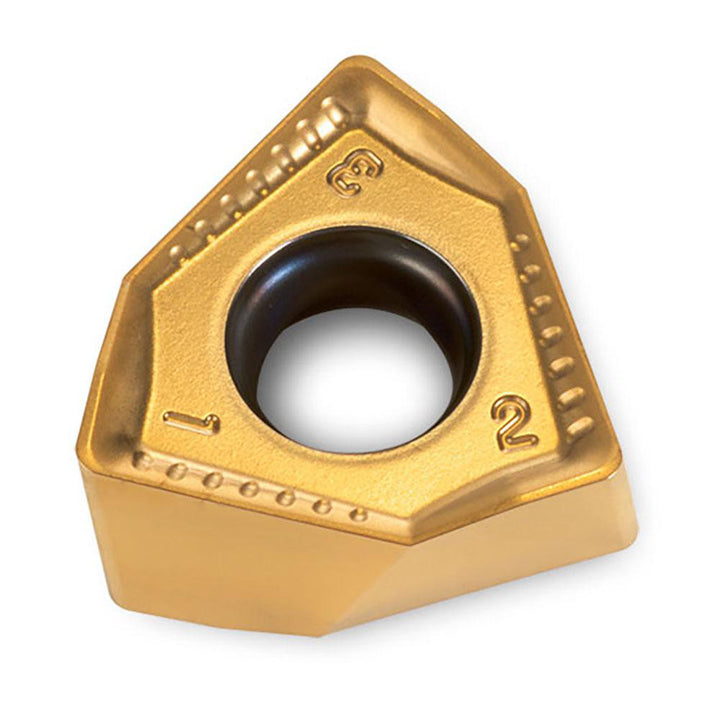

The Ingersoll Cutting Tools 5813436 is a WNGU130608R IN2540 solid carbide indexable insert, grade IN2540, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeWNGU130608R IN2540
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility1DJ1P; DJ5P
Cutting edge effective length0.3600
Cutting edge styleCorner Rounded
Included angle degree80
Inscribed circle0.5140
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size13
Insert size code130608
Insert styleWNGU
Iso codeWNGU130608R IN2540
Manufacturers catalog number5813436
Manufacturer gradeIN2540
Material applicationSteel; Cast Iron
Material gradeFine Grain; Medium Grain
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2650
Thickness range0.2500 to 0.3500
Width0.5140
