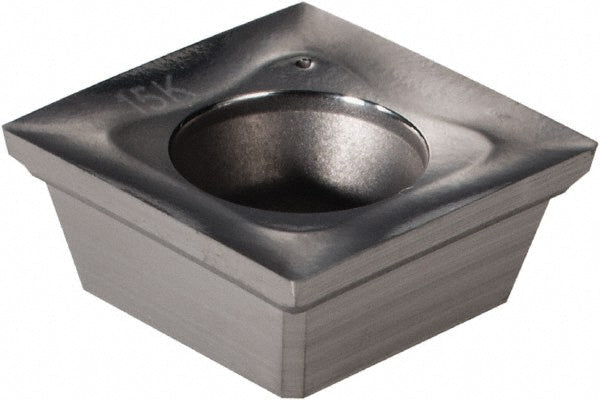

SHET110502FR-P IN15K Solid Carbide Insert, Grade IN15K - Ingersoll Cutting Tools 5820968

Ingersoll Cutting Tools

SHET110502FR-P IN15K Solid Carbide Insert, Grade IN15K - Ingersoll Cutting Tools 5820968

MFR# 5820968ISO/ANSI# SHET110502FR-P IN15KSeries SHET

$24.98List $30.90 Save 19%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN15K
MaterialSolid Carbide

Description

The Ingersoll Cutting Tools 5820968 is a SHET110502FR-P IN15K solid carbide indexable insert, grade IN15K. Suited for non-ferrous metal.

Specifications

Ansi codeSHET110502FR-P S IN15K
Chip breakerP
Coating processUncoated
Corner radius in1/128
Cutter series compatibility15U1G; 5H6G
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.4330
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size11
Insert size code110502
Insert styleSHET
Iso codeSHET110502FR-P IN15K
Length0.4330
Length range0.4000 to 0.4500
Manufacturers catalog number5820968
Manufacturer gradeIN15K
Material applicationNon-Ferrous Metal
Material gradeFine Grain; Medium Grain
Multi use toolNo
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1970
Thickness range0.1850 to 0.2000
Width0.4330
