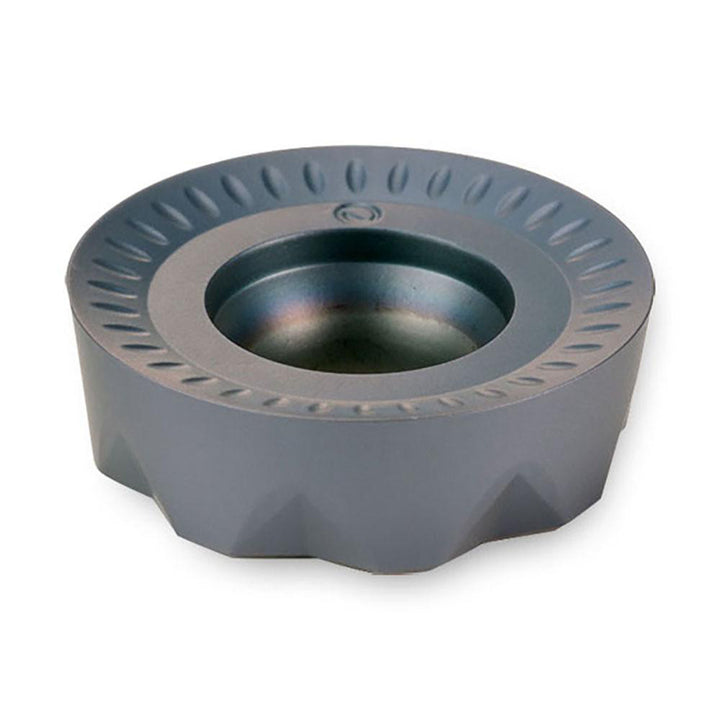

RCKX64TN-M J IN2030 Solid Carbide Insert, Grade IN2030, TiAlN - Ingersoll Cutting Tools 5821042

Ingersoll Cutting Tools

RCKX64TN-M J IN2030 Solid Carbide Insert, Grade IN2030, TiAlN - Ingersoll Cutting Tools 5821042

MFR# 5821042ISO/ANSI# RCKX64TN-M J IN2030Series RCKX

$20.54List $25.85 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeRound
GradeIN2030
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5821042 is a RCKX64TN-M J IN2030 solid carbide indexable insert, grade IN2030, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeRCKX64TN-M J IN2030
Chip breakerM
Coating finishTiAlN
Coating processPVD
Corner radius in3/8
Cutter series compatibility15B4M; 5W6N
Cutting edge styleT-Land
Included angle degree360
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size64
Insert size code64
Insert styleRCKX
Iso codeRCKX64TN-M J IN2030
Length in3/4
Length range0.7000 to 0.9000
Manufacturers catalog number5821042
Manufacturer gradeIN2030
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in3/4
