Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5840010

MFR# 5840010Cat# 47D-5037T8RD03 IN2005Series Chip Surfer

$105.69List $131.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIN2005
CoatingTiAlN

Description

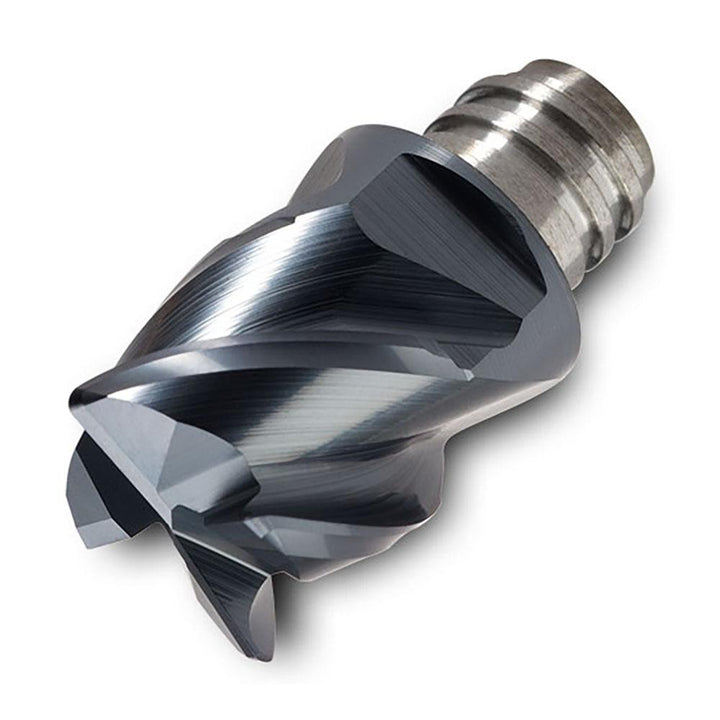

The Ingersoll Cutting Tools 5840010 is a carbide indexable insert, grade IN2005, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.3100
Cutting diameter0.5000
Extension from holder in0.6500
Functional length0.6500
Helix angle45
Included angle degree90
Length of cut0.3700
Manufacturers catalog number47D-5037T8RD03 IN2005
Manufacturer gradeIN2005
Material gradeC2
Maximum depth of cut0.37
Milling tip full descriptionCorner Radius End Mill
Milling tip style47D
Milling tip typeEnd
Number of flutes4
Overall length0.6500
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Thread sizeT08
Tool materialCarbide
